 Solar Power Combiner Boxes



Solar Power Combiner Box SCB1 Series  Solar Power Combiner Box

SCB1 Series Solar Power Combiner Boxes are rugged combiners that feature a weatherproof, non-conductive, UL listed NEMA 4X rated fiberglass enclosure and touch-safe fuse holders. Models are available in 3, 4 and 6 string setup and are rated for 600 Vdc continuous duty.


Solar Power Combiner Box CSCB1 Series  - Compact Solar Power Combiner Box

CSCB1 Series - Compact, Solar Power Combiners feature a weatherproof, non-conductive Fiberglass, UL listed enclosure. Models are available for 2 or 3 string configurations and are rated for 600 Vdc continuous duty.


Compact Solar Power Combiner Box ESCB Series  Economical, Compact Solar Combiner Box

ESCB Series Solar Power Combiner Boxes are weatherproof, low cost, and feature a weather protected, rugged plastic enclosure and UL listed components. Models are available in 2 and 3 string setup and are rated for 600 Vdc continuous duty.


Compact Solar Power Combiner Box ESCB-XA Series  Economical, Compact Solar Combiner Box

ESCB-XA Series Solar Power Combiner Boxes are weatherproof, low cost, and feature a weather protected, rugged plastic enclosure and UL listed components. Models are available in 2 and 3 string setup and are rated for 600 Vdc continuous duty.


Solar Power Combiner Box SCB2 Series - Solar Power Combiner Box

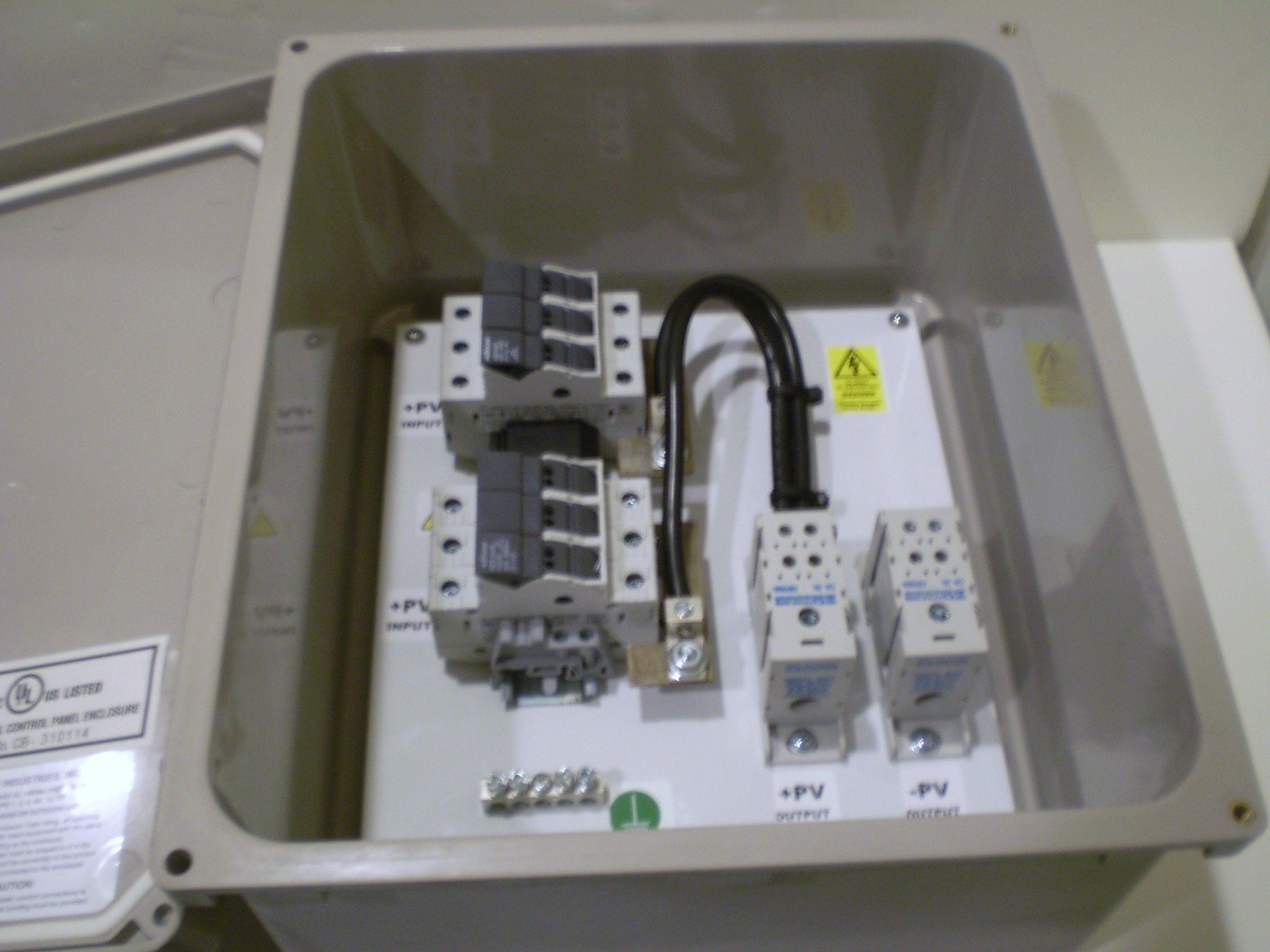

SCB2 Series Solar Power Combiner Boxes are rugged combiners that feature a weatherproof, non-conductive, UL listed NEMA 4X rated fiberglass enclosure and touch-safe fuse holders and distribution blocks. Models are available in 6 or 8 string setup and are rated for up to 600 Vdc continuous duty.


Solar Power Combiner Box SCB2-DF Series  Dual Fused Solar Power Combiner Box

SCB2-DF Series Dual Fused Solar Combiner Boxes feature both positive and negative side fusing. Features include UL, NEMA 4X rated fiberglass enclosures, touch-safe fuse holders/distribution blocks and optional lightning/surge protection. Models are available in 3, 4 and 5 string setup and are rated for up to 600V. Dual fused models are prefered for use with transformerless inverters.


Solar Power Combiner Box ESCB-XL Series  Dual Fused Solar Power Combiner Box

ESCB-XL Series Dual Fused Solar Combiner Boxes feature both positive and negative input fusing. Features include UL, NEMA 4X rated fiberglass or Polycarbonate enclosures, touch-safe fuse holders/distribution blocks and optional lightning/surge protection. Models are available in 2 and 3 string setup and are rated for up to 600V. Dual fused models are prefered for use with transformerless inverters.


Solar Power Terminal Box SPTB Series - Solar Power Combiner/Terminal Box

SPTB Series are non-fused Solar Power Terminal Boxes that feature a weatherproof, non-conductive, UL listed NEMA 4X rated enclosure and touch-safe terminal distribution blocks. Models are available in 2, 3 and 4 string setup and are rated for up to 600 Vdc continuous duty.


Pre wired solar combiner box SCB-PW1 Series - Pre-wired Solar Power Combiner Box

SCB-PW1 Series - Pre-wired, Compact, Solar Power Combiners feature a weatherproof, non-conductive, UL listed enclosure. Models are pre-wired with industry standard MC4 style connectors and are available in 2, 3 or 4 string configuration. Rated for 600 Vdc continuous duty.


6-String Solar Power Combiner Box Model SCB-PW6 - Pre-wired Solar Power Combiner Box

Model SCB-PW6 - Pre-wired, Compact, Solar Power Combiners feature a weatherproof, non-conductive, UL listed enclosure. Model is pre-wired with industry standard MC4 style connectors and provides a 6 string non-fused configuration. Rated for 600 Vdc continuous duty.


Solar Power Terminal Box SCB-PW4 Series - Pre-wired Solar Power Combiner Box

SCB-PW4 Series - Pre-wired, Compact, Fused Solar Power Combiners feature a weatherproof, non-conductive, UL listed enclosure. Models are pre-wired with industry standard MC4 style connectors and provide a 4 string configuration. Rated for 600 Vdc continuous duty.


Solar Power Combiner with Circuit Breakers CSCB-CB - Solar Power Combiner Box with Circuit Breakers

CSCB-CB Series - Compact, Solar Power Combiners feature a weatherproof, non-conductive enclosure. Models are available for 2, 3 or 4 string configuration, 5, 10, 15 or 20 Amp circuit breakers and are rated for 150 Vdc continuous duty per string.


4-String Fused Solar Power Combiner SCB4S - Compact, 4-String Fused Solar Power Combiner Box

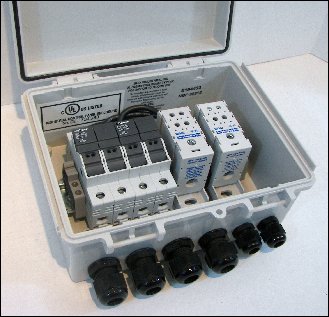

SCB4S Series - Model SCB4S Compact, Solar Power Combiner Box features a weatherproof, non-conductive, UL listed, UV stabilized enclosure. Unit fused with a 4-string configuration. Rated for 600 Vdc continuous duty.


6-String Pre-wired Solar Power Combiner SCB-PW1-6XL - 6-String Pre-wired Solar Combiner Box

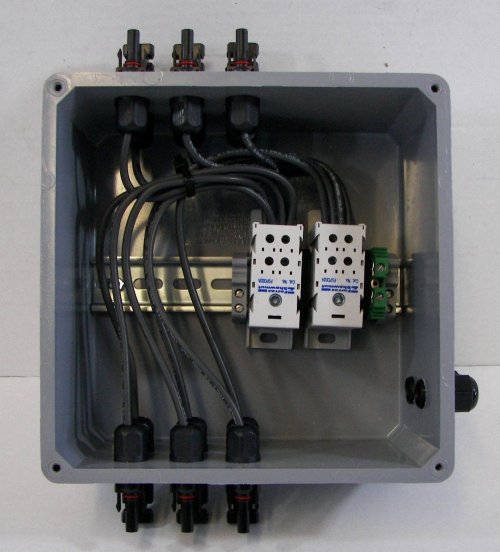

Model SCB-PW1-6XL Solar Power Combiner Box features a weatherproof, non-conductive, UL listed, UV stabilized enclosure. Unit features a 6-string pre-wired with MC4 connectors configuration. Rated for 600 Vdc continuous duty.


Solar Power Combiner Box 2SC3R Series - NEMA 3R Solar String Combiner Box

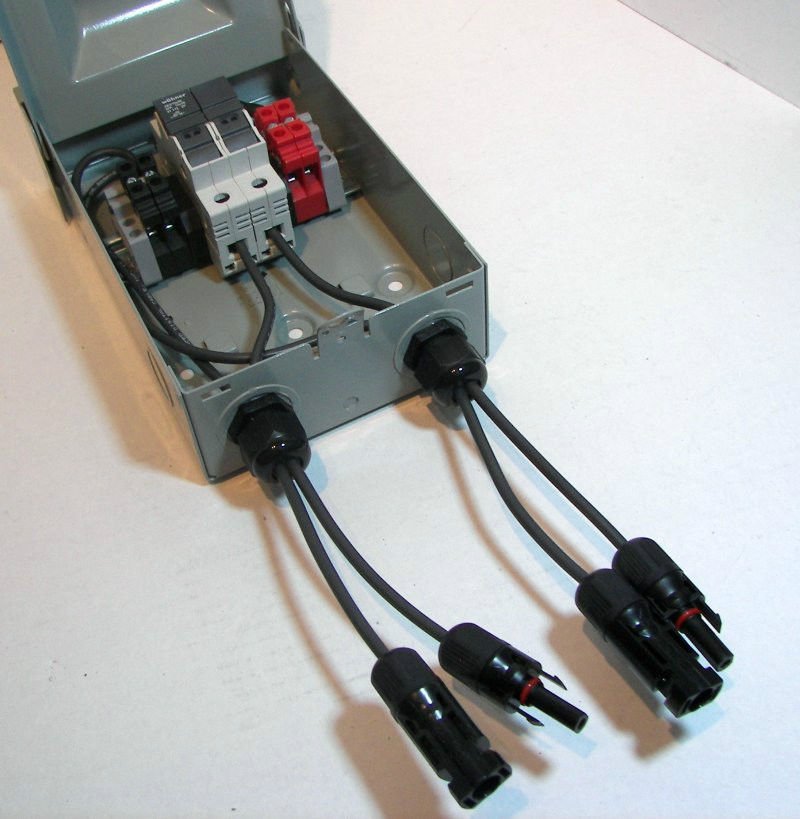

2SC3R Series Solar Power Combiner Boxes feature a weather protected, NEMA 3R rated enclosure and UL listed components. Models are available in 2, and 3 string setup and are rated for 600 Vdc continuous duty. Models are available pre-wired with MC4 or MC3 Connectors.


Solar Power Combiner Box 2SC3R-PW Series - NEMA 3R Solar String Combiner Box

Model 2SC3R-PW - Pre-wired, Solar Power Combiner feature a weatherproof, painted steel, NEMA 3R enclosure. Model is fused and pre-wired with industry standard MC4 style connectors that provide a 2 or 3-string configuration. Rated for 600 Vdc continuous duty.


Solar Power Combiner Box SCB-CBXL Series - Solar Combiner Box with Circuit Breakers

SCB-CBXL Series - Solar Power Combiners feature a weatherproof, non-conductive enclosure. Models are available configured for 6, 7 or 8 string configuration with 5, 10, 15 or 20 Amp circuit breakers and are rated for a maximum 150V DC continuous duty per string.
