Fused Solar Power Combiner Box
Series: 2SC3R
Features
Models For 2 or 3-String Connection
Continuous Duty Rated at 600 Vdc
Touch-safe Fuse Holders
NEMA 3R, Painted Steel Box
Includes Output Circuit Cable Clamp
Applications
|
- Multi String Solar Power Systems
|
- Reduces Wiring to Inverter Box
|
|
Description

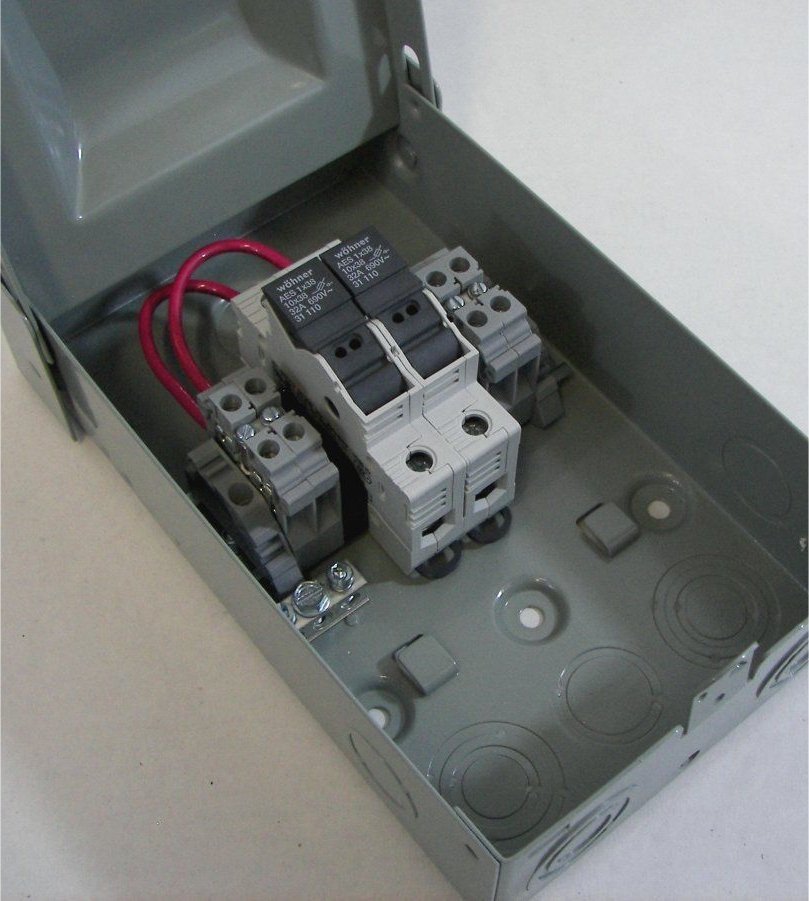

Model 2SC3R - Solar Power Combiner feature a weatherproof,
painted steel NEMA 3R enclosure. Model is fused and features Din-rail terminal blocks for output connection.
Models provide a 2 or 3-string configuration.
Rated for 600 Vdc continuous duty.
|
|
General Specifications
|
|
Operating Temperature:
|
-40 to 130 ºF (-40 to 60 ºC)
|
|
Enclosure Size:
|
8 x 8 x 4"
|
|
Enclosure: Material:
|
Painted Steel
|
|
Enclosure Rating:
|
NEMA 3R, UL Listed
|
|
|
Available Models
|
|
Model Number
|
2SC3R-2
|
2SC3R-3
|
|
Input Circuits
|
2
|
3
|
|
Input Circuit Connection
|
8-14 AWG
|
8-14 AWG
|
|
Output Wire Size
|
8-14 AWG
|
8-14 AWG
|
|
Earth Ground Terminals
|
1 Ea, 8-14 AWG
|
1 Ea, 8-14 AWG
|
|
Max Voltage Rating
|
600 Vdc
|
600 Vdc
|
|
Max Current Per Input Circuit
|
20 Amps
|
20 Amps
|
|
Max Total DC Output Current
|
40 Amps
|
50 Amps
|
|
|
Note: Continued product improvements make specifications subject to change without notice.
|
