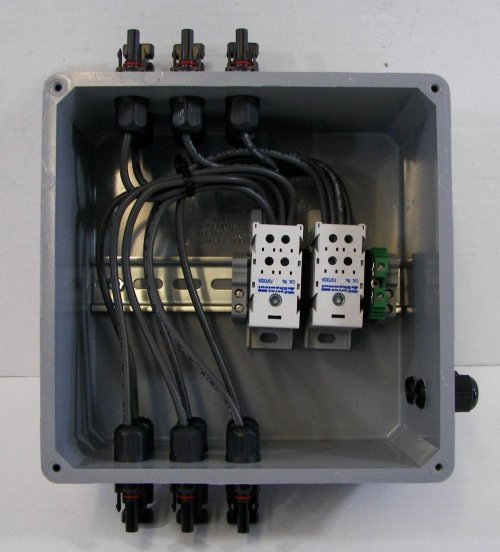

Pre-wired, 6-String, Non-Fused Solar Power Combiner Box
Series: SCB-PW1-6XL
Features
6-String Solar Panel Connection
Continuous Duty Rated at 600 Vdc
Touch-safe Junction Blocks
Weatherproof, Non-conductive Box
Includes Output Circuit Cable Gland
Pre-wired With Standard MC4 Connectors
Applications
|
- Remote Solar Power Systems
|
- Reduces Wiring to Inverter Box
|
|
Description
Model SCB-PW1-6XL - Pre-wired, Solar Power Combiner feature a weatherproof,
non-conductive, UL listed enclosure. Model is non-fused and pre-wired with industry
standard MC4 style connectors that provide a 6 string configuration.
Rated for 600 Vdc continuous duty.
|
|
General Specifications
|
|
Operating Temperature:
|
-40 to 130 ºF (-40 to 60 ºC)
|
|
Enclosure Size:
|
8 x 8 x 4"
|
|
Enclosure: Material:
|
PVC Plastic
|
|
Enclosure Rating:
|
NEMA 4X, UL Listed
|
|
|
Available Models
|
|
Model Number
|
SCB-PW1-6XL
|
SCB-PW1-6XL-LP
|
|
Input Circuits
|
6
|
6
|
|
Input Circuit Connection (Pre-wired)
|
MC4
|
MC4
|
|
Output Wire Size
|
2/0-14 AWG
|
2/0-14 AWG
|
|
Earth Ground Terminals
|
1 Ea, 8-14 AWG
|
1 Ea, 8-14 AWG
|
|
Max Voltage Rating
|
600 Vdc
|
600 Vdc
|
|
Max Current Per Input Circuit
|
20 Amps
|
20 Amps
|
|
Max Total DC Output Current
|
120 Amps
|
120 Amps
|
|
Lightning/Surge Protection
|
N/A
|
500V
|
|
|
Note: Continued product improvements make specifications subject to change without notice.
|
