Industrial Wireless 4-20mA Transmitter/Receiver Set
|
|
|
|
Industrial Wireless 4-20mA Transmitter/Receiver Set
|
|
Model: WIDXL-900-420MA
Features
Provides Wireless Bridge for 4-20mA Loop Signal
Receiver Output Mirrors Transmitter Input
Receiver Provides 4-20mA or 1-5V DC Output
Includes One Bi-directional Control Line
Up To 6 Miles Line-of-site Transmit/Receive Distance
Adds Wireless Capability to Any Existing System
12-24V DC Operation
Rugged Powder Coated Aluninum Enclosures
Sold As Transmitter/Receiver Matched Set
License Free Point-to-point Radio Operation
|
Applications
Process Transmitter Signals,
Valve Positioning & Control,
Remote Sensor Monitoring
Description
The WIDXL-900-420MA Wireless Analog Transmitter/Receiver System allows for
remotely monitoring or controlling equipment from a distance up to
6 miles away using license free wireless 900MHz communication.
Each set features one 4-20mA analog signal input and output.
Both the transmitter and receiver are also equipped with one
contact closure input that is used to control an
open-collector output on the opposing unit for additional control or alarm functionality
|
|

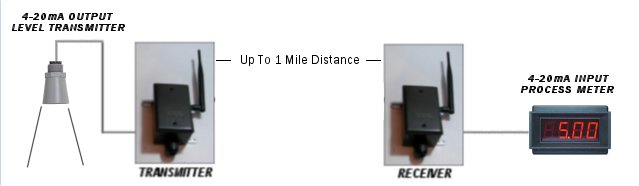

EXAMPLE: Level Transmitter Sending Readings to a Remote Process Meter
|
|
General Specifications
|
|
Radio Frequency:
|
900 MHz
|
|
Regulatory:
|
FCC Part 15 (No license required)
|
|
Transmitter/Receiver Code Matching:
|
Factory set
|
|
Antenna Connection:
|
RP-SMA
|
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance
(with included antennas):
|
with included antennas: Urban 1000ft, Line-of-site 3 Miles
|
Transmit/Receive Distance
(with optional antennas):
|
with optional antennas: Urban 1600ft, Line-of-site 6 Miles
|
|
Operating Temperature:
|
-22 to 113 ºF (-30 to 45 ºC)
|
|
Enclosure:
|
Powder Coated Aluminum
|
|
Antennas:
|
5dbi, Omni-directional (Included)
|
|
Transmitter Specifications
|
|
Analog Input:
|
4-20mA
|
|
Switch Control Input/Output Lines:
|
1 Dry-contact input, 1 Open-collector output
|
|
RF Power Output:
|
100mW
|
|
RF Data Rate:
|
10 kbps
|
|
RF Output Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
Receiver Specifications
|
|
Analog Output:
|
4-20mA
|
|
Switch Control Input/Output Lines:
|
1 Dry-contact input, 1 Open-collector output
|
|
Receive Sensitivity:
|
-100 dBm
|
|
RF Input Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
Control Output:
|
Open-collector, 12-24V DC, 1.2W Max
|
|
Regulatory Approvals
|
|
Regulatory:
|
FCC Part 15 (No license required)
|
|
FCC(USA):
|
MCQ-XBEEXSC
|
|
IC (Canada):
|
1846A-XBEEXSC
|
|
Transmitter Operation
|
Transmitter Operation
The wireless 4-20mA analog signal transmitter reads analog
input data from temperature, pressure, strain, flow, level or RH
sensors and then sends the measured data over the air to a remote location.
The measured 4-20mA current signals are converted
to digital packets and then transmitted via a license free radio
transmission to a waiting control receiver. The transmitter also
includes one dry-contact switch input that controls one open collector
output on the opposing control receiver.
|
|
Receiever Operation
|
Transmitter Operation
The wireless 4-20mA analog receiver decodes any incoming
radio packets and converts them back into the same 4-20mA current signal that is being measured by the transmitter
in real time. The control receiver also includes one
dry-contact switch input that controls one open collector
output on the opposing transmitter.
|
|
Available Models
|
|
See Full Data Sheet For Additional Specifications.
|
Data Sheet
|
|
Each Wireless Transmitter/Receiver Set includes 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.
Note: Continued product improvements make specifications subject to change without notice.
|
|
This product is approved for use in North America.
|
