Tower Light Indicators with Wireless Remote Control Switch Box

Tower Light Indicators with Wireless Remote Control Switch Box Series: WTLBC


     2.4 GHz Wireless Operation Up to 1 mile LOS

     Green, Amber, Red, Blue or White Lights

     Attached or Remote Switch Box Models

     Rugged Switch Box Can Be Desk or Wall Mounted

     12V DC, 24V DC or 120V AC Operation

     Models with Audible Annunciator Available

     Non Wireless Models Available, See TLBC-XL Series


  • Industrial Operation Status Alarms
  • Factory Process Notification
  • Alert or Warning Indication for Office or Factory

The WTLBC Series are Multi-color Tower Lights mounted onto a rugged plastic enclosure with wireless operated industrial control switches. Versions are available with an attached switch box or a remote cable between the light assemblies and wireless switch control box. Two different wireless ranges are available with control distances up to 1 miles (LOS). Features include stainless steel mounting brackets, rotary or push-button switches and terminal blocks for power connection. Operating power options are 12V DC or 120V AC.

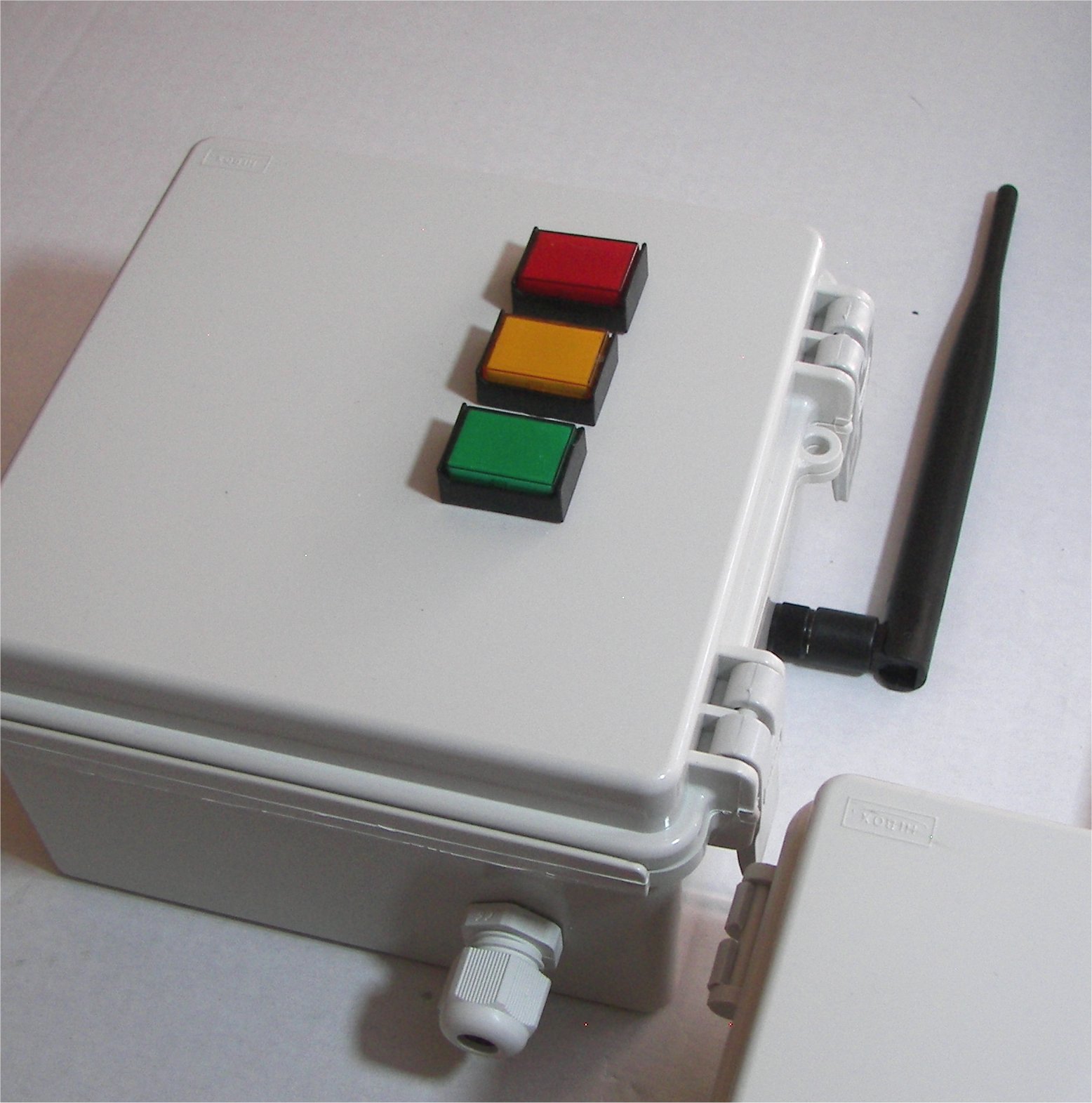

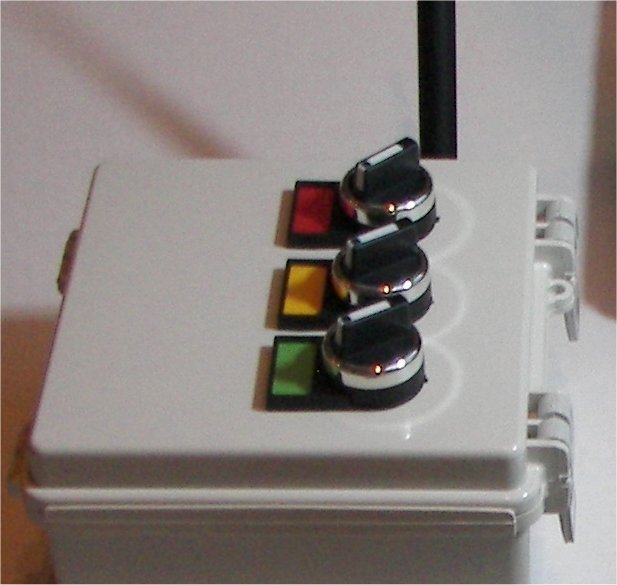

wireless Tower light switch control box wireless Tower light switch control box

General Specifications
Radio Frequency: ISM 2.4GHz
Regulatory: FCC Part 95 (No license required)
Control Lines: 1, 2, 3 or 4
Transmitter/Receiver Code Matching: Factory set
Antenna Connection: RP-SMA
Wiring Connection: Terminal Blocks
Transmit/Receive Distance
(with included antennas):
Indoor/Urban 100ft, Line-of-site 600ft
Transmit/Receive Distance
(with optional antennas):
Indoor/Urban 300ft, Line-of-site 1 Mile
Operating Temperature: -22 to 113 F (-30 to 45 C)
Enclosure: ABS/PC Blend Plastic
Antennas: 5dbi, Omni-directional (Included)

Transmitter Specifications
Control Input Type: Switch (Dry-contact)
RF Power Output: 63mW
RF Data Rate: 250 kbps
RF Output Impedance: 50 Ohm nominal
Power Connection: Internal Terminal Block or Attached Cable
Operating Power: 12V DC, 24V DC or 120V AC (by model)
Installation: For Indoor Use Only
Light/Switch Box Dimension: 5.9" x 5.9" x 3.6",

Available Models
Models Data Sheet Link (pdf)
See Data Sheet for full model list. WTLBC Series
