Compact 1-Zone Benchtop Thermocouple Temperature Controller

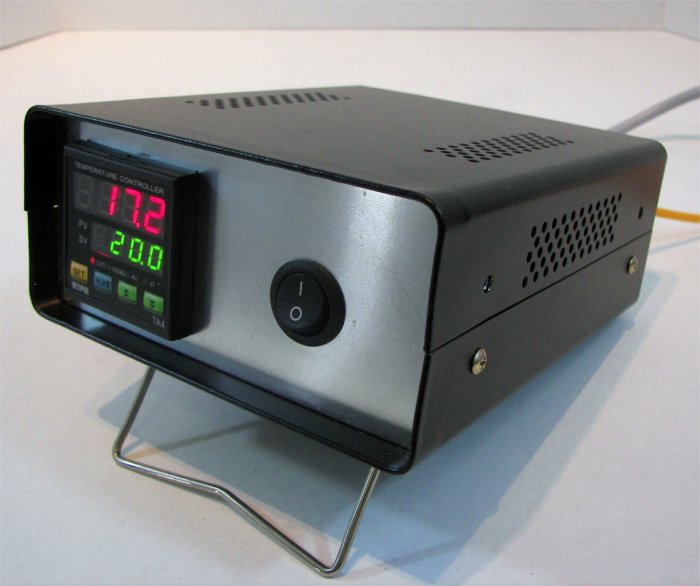

Benchtop Thermocouple Temperature Controller Series: MBC1-TC

Features

     Built-in SSR with 8 Amp Load Capacity

     Accurate To ± 0.5% of Full Scale Input

     Rugged, Vented, Metal Benchtop Design

     Preassembled, Prewired, Ready-To-Use

     Self-powered Fused Control Output

     Available In J, K or T Calibration



Applications

  • R & D Laboratory Use
  • Equipment Sterilization
  • Food Processing
  • Pharmaceutical
Description

Series MBC1 are compact Benchtop Temperature Controllers that provide accurate temperature control for a variety of laboratory heating applications. The metal enclosure is compact at only 2.6" high x 5.5" wide x 6.7" deep. The unit operates on 120VAC and consists of a high performance temperature controller with one pre-wired output. The fused 120Vac output provides up to 8 Amps to control heaters and other similar scientific and industrial equipment. Temperature is controlled by connecting any standard thermocouple. A switch on the front panel controls both power to the unit and output power. Standard features include a fused power cord and fused output receptacle. Thermocouple sensor is connected via an industry standard miniature jack located on the rear panel (Mating Connected Included).

Specifications
Temperature Accuracy: ± 0.5% Full scale
Display: 4-digit LED
Display Resolution: ± 1º
Operating Voltage: 110-120VAC, 50/60 Hz
Operating Temperature: 32 to 104 ºF (0 to 40 ºC)
Enclosure: Painted Steel Body, Aluminum Panels
Dimensions: 2.6" H x 5.5" W x 6.7" L

Available Models
Model Number Input Type Control Output Capacity Temperature Range
MBC1-TC-J Type-J 120Vac / 8A (SSR) 32 to 1499 ºF (0 to 815 ºC)
MBC1-TC-K Type-K 120Vac / 8A (SSR) 32 to 1499 ºF (0 to 815 ºC)
MBC1-TC-T Type-T 120Vac / 8A (SSR) -238 to 752 ºF (-150 to 400 ºC)

 Note: Continued product improvements make specifications subject to change without notice.
