 Wireless Remote Control Transmitter/Receiver Set


Long Distance Wireless Remote Control Switch Transmitter / Relay Receiver Set

SERIES: WXL-ME

Linear XT XR Replacement    Features

    Wireless Bridge Between Switches & Relays

    Supervisory "Low Power" & "RF Loss" Alarms

    Activate Transmitter with Any Dry-contact Switch

    Models Available With 1, 2 or 4 Control Lines

    Up To 6 Mile Line-of-site Distance

    Receiver Provides SPDT Mechanical Relays

    Transmitter Powered by Battery or DC Supply

    NEMA 4, 4X Anodized Aluminum Enclosures

    Pre-configured, Ready-To-Operate

    Sold As Transmitter/Receiver Matched Set

    License Free Radio Operation

Applications

Tank Level Monitoring, Pump or Motor Control, Valve Activation, Gate or Lighting Control


Description

The WXL-ME transmitters and receivers are designed for use in various wireless remote-control applications. When triggered with an external dry-contact switch, the switch transmitter will send a digital encoded, FSK modulated signal to its companion control receiver. The receiver will verify the digital code and then activate its relay output.

Each system is sold as a factory programmed matched set. That means there is no field settings needed to operate right out of the box.

Power for the transmitter or receiver can come from any external 12 VDC power supply or battery. An internal fuse protects each unit from a reverse power connection.

NOTE: UNITS ARE FACTORY PROGRAMED AS A SINGLE MATCHED SET. IF YOU WANT TO USE ONE TRANSMITTER TO CONTROL MORE THAN ONE RECEIVER, OR MORE THAN ONE TRANSMITTER TO CONTROL A SINGLE RECEIVER, PLEASE CONTACT US PRIOR TO PURCHASING SO WE CAN CUSTOMIZE A GROUP OF UNITS FOR YOU SPECIFIC TO YOUR APPLICATION. THERE IS NO EXTRA CHARGE FOR THIS SERVICEE.

Industrial Wireless Remote Control Transmitter System Industrial Wireless Remote Control Transmitter System

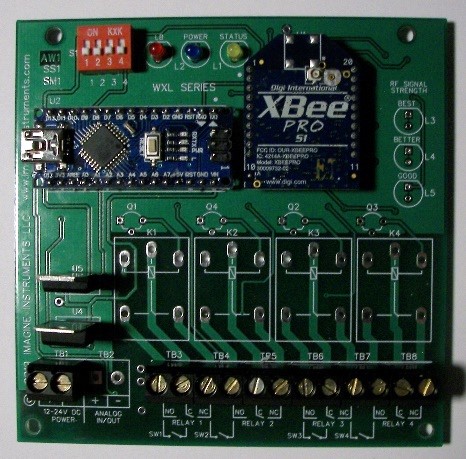

The WXL-ME Series Switch Transmitter features up to 4 dry-contact inputs that activate relays of the receiver unit. The unit also sends supervisory system data to the receiver

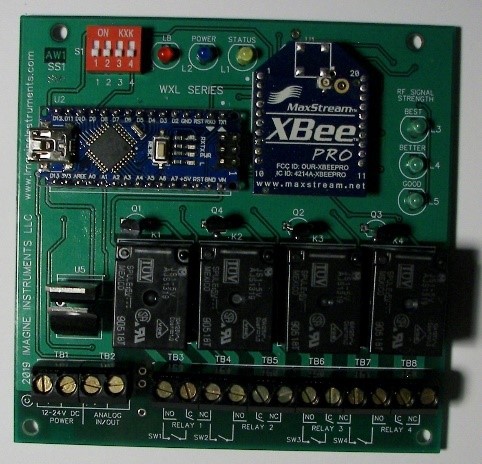

The WXL-ME Series Receiver features up to 4 control relays. The unit also provides an Alarm output for Transmitter low power or RF signal loss.

2.4 GHz General Specifications
Radio Frequency: 2.4 GHz
Regulatory: FCC Part 15 (No license required)
Control Lines: 1, 2 or 4
Transmitter/Receiver Code Matching: Factory set
Antenna Connection: RP-SMA
Wiring Connection: Terminal Blocks
Transmit/Receive Distance
(with included antennas):
Line-of-site 600ft Max
Transmit/Receive Distance
(with optional antennas):
Line-of-site 1 Mile
Operating Temperature: -22 to 130 F (-30 to 54 C)
Enclosures: NEMA 4, 4X, Anodized Aluminum
Antennas: 5dbi, Omni-directional (Included)

2.4 GHz Transmitter Specifications
Control Input Type: Switch (Dry-contact)
RF Power Output: 63mW
RF Data Rate: 250 kbps
RF Output Impedance: 50 Ohm nominal
Operating Power: 11-14 VDC @ 2W max

2.4 GHz Receiver Specifications
Receive Sensitivity: -100 dBm
RF Input Impedance: 50 Ohm nominal
Operating Power: 11-14 VDC @ 3W max
Control Output: Relays, 3A, 250V, SPDT
900 MHz General Specifications
Radio Frequency: 900 MHz
Regulatory: FCC Part 15 (No license required)
Control Lines: 1, 2 or 4
Transmitter/Receiver Code Matching: Factory set
Antenna Connection: RP-SMA
Wiring Connection: Terminal Blocks
Transmit/Receive Distance
(with included antennas):
Line-of-site 3 Miles
Transmit/Receive Distance
(with optional antennas):
Line-of-site 6 Miles
Operating Temperature: -22 to 130 F (-30 to 54 C)
Enclosures: NEMA 4, 4X Anodized Aluminum
Antennas: 7dbi, Omni-directional (Included)

900 MHz Transmitter Specifications
Control Input Type: Switch (Dry-contact)
RF Power Output: 100mW
RF Data Rate: 10 kbps
RF Output Impedance: 50 Ohm nominal
Operating Power: 11-14 VDC @ 2W max

900 Mhz Receiver Specifications
Receive Sensitivity: -106 dBm
RF Input Impedance: 50 Ohm nominal
Operating Power: 11-14 VDC @ 3W max
Control Output: Relays, 3A, 250V, SPDT

Regulatory Approvals
Regulatory: FCC Part 15 (No license required)
FCC(USA): 2.4 GHz MCQ-XBEEXSC
IC (Canada): 2.4 GHz 1846A-XBEEXSC
FCC(USA): 900 MHz MCQ-XBEEXSC
IC (Canada): 900 MHz 1846A-XBEEXSC

Available Models
Model Number Description Control Lines
WXL-ME-24-1 2.4 GHz 1-Line Wireless Remote Control Transmitter/Receiver Set 1
WXL-ME-24-2 2.4 GHz 2-Line Wireless Remote Control Transmitter/Receiver Set 2
WXL-ME-24-4 2.4 GHz 4-Line Wireless Remote Control Transmitter/Receiver Set 4
WXL-ME-900-1 900 Mhz 1-Line Wireless Remote Control Transmitter/Receiver Set 1
WXL-ME-900-2 900 Mhz 2-Line Wireless Remote Control Transmitter/Receiver Set 2
WXL-ME-900-4 900 Mhz 4-Line Wireless Remote Control Transmitter/Receiver Set 4
Each Wireless Transmitter/Receiver Set includes Omni Antennas, 9' Antenna Extension Cables, Antenna Mounting Brackets and User Manual.

Note: Continued product improvements make specifications subject to change without notice.
This product is approved for use in USA.
