 Wireless Remote Control Transmitter/Receiver Set


Industrial Wireless 4-20mA Transmitter/Receiver Set

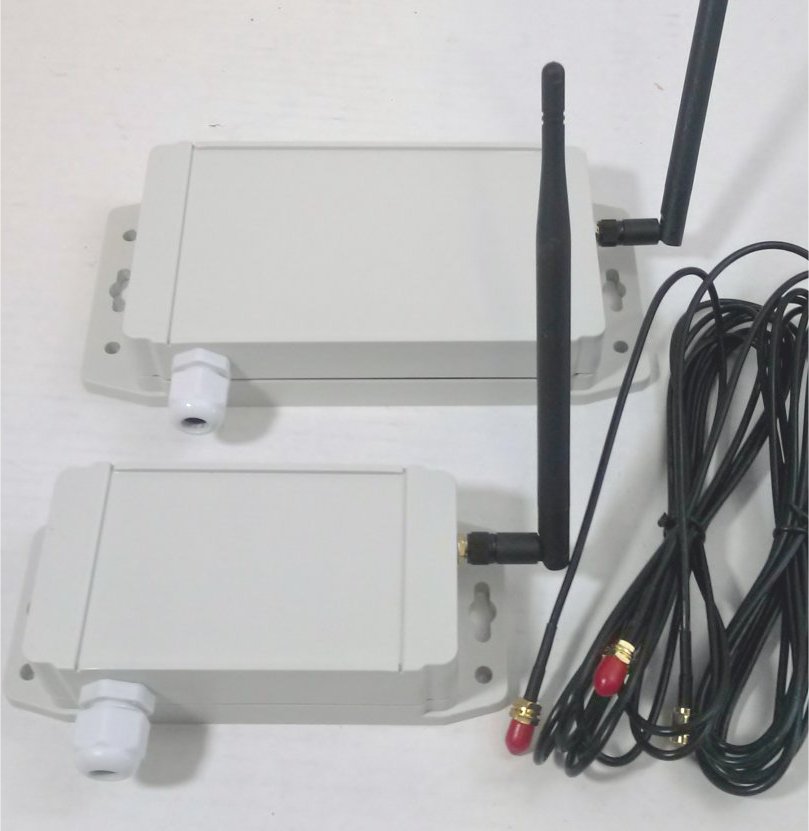

Wireless Remote Control Transmitter System Model: WAS900-MS-420MA

Features

    Provides Wireless Bridge for 4-20mA Loop Signal

    Receiver Output Mirrors Transmitter Input

    Receiver Provides 4-20mA or 1-5V DC Output

    Up To 6 Mile Line-of-site Transmit/Receive Distance

    Adds Wireless Capability to Any Existing System

    12-24V DC Operation

    NEMA 4X Plastic Enclosures

    Sold As Transmitter/Receiver Matched Set

    License Free Point-to-point Radio Operation

Applications

Process Transmitter Signals, Valve Positioning & Control, Remote Sensor Monitoring


Description

The WAS900-MS-420MA Wireless Analog Transmitter/Receiver System allows for remotely monitoring or controlling equipment from a distance up to 6 miles away using license free wireless 900MHz communication.

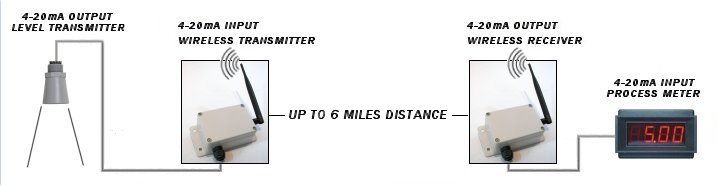

EXAMPLE: Level Transmitter Sending Readings to a Remote Process Meter
wireless 4-20ma Transmitter

General Specifications
Radio Frequency: 900MHz
Regulatory: FCC Part 5 (No license required)
Transmitter/Receiver Code Matching: Factory set
Antenna Connection: RP-SMA
Wiring Connection: Terminal Blocks
Transmit/Receive Distance
(with included antennas):
Urban 1000ft, Line-of-site 3 Miles
Transmit/Receive Distance
(with optional antennas):
Urban 1600ft, Line-of-site 6 Miles
Operating Temperature: -22 to 113 F (-30 to 45 C)
Enclosure: PCT Plastic, NEMA 4, 4X
Antennas: 5dbi, Omni-directional (Included)

Transmitter Specifications
Analog Input: 4-20mA
RF Power Output: 100mW
RF Data Rate: 250 kbps
RF Output Impedance: 50 Ohm nominal
Operating Power: 12 - 24V DC @ 3W max

Receiver Specifications
Analog Output: 4-20mA
Receive Sensitivity: -100 dBm
RF Input Impedance: 50 Ohm nominal
Operating Power: 12 - 24V DC @ 3W max

Regulatory Approvals
Regulatory: FCC Part 15 (No license required)
FCC(USA): MCQ-XBEEXSC
IC (Canada): 1846A-XBEEXSC
Transmitter Operation Transmitter Operation The wireless 4-20mA analog signal transmitter reads analog input data from temperature, pressure, strain, flow, level or RH sensors and then sends the measured data over the air to a remote location. The measured 4-20mA current signals are converted to digital packets and then transmitted via a license free radio transmission to a waiting control receiver.
Receiever Operation Transmitter Operation The wireless 4-20mA analog receiver decodes any incoming radio packets and converts them back into the same 4-20mA current signal that is being measured by the transmitter in real time.

Available Models
See Full Data Sheet For Additional Specifications.
Data Sheet
Each Wireless Transmitter/Receiver Set includes 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.

Note: Continued product improvements make specifications subject to change without notice.
This product is approved for use in North America.
