 Wireless Remote Control Pump System


Long Distance Wireless Valve Control Panel System


Wireless Remote Control Pump System Series: WVC27

Features

    Up To 6 Mile Wireless Operation

    Uses License Free RF Technology

    Use Level / Float Switches or PLC To Activate

    10, 20, 30, 40 Amp Control Relays or Contactor

    2-Way Communication with Verification

    Controller Displays RF Fault & Low Power Alert

    AC, DC or Solar Power Operation

    Weatherproof NEMA 4X Rated Enclosures

    Matched Set Requires No Field Programming




Applications

Water Tanks, Pumps, Motorized Valves, and Irrigation Systems


Description

WVC27 Series - Wireless Valve Control Panel is pre-configured, pre-wired and ready to install. Series provides a fast, economical solution for wireless remote control of one valve at up to 6 mile distance between switch transmitter and relay control receiver. Each system features 12VDC, Solar or 120VAC operation, valve status indicators, wireless transmitter/receiver module, circuit breakers, din-rail terminal blocks and control relay.

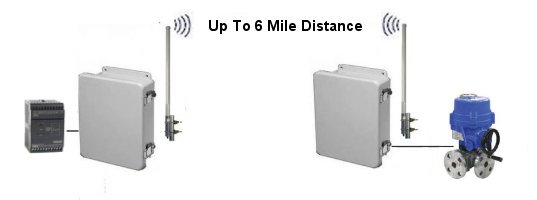

Typical Wireless Valve Remote Control Application
wireless valve control panel system
PLC Opening And Closing A Motorized Valve Up To 6 Miles Away.

General Specifications
Radio Frequency: 27.255 MHz
Transmit Power: 10 Watts
Transmit/Recieve Distance: Up to 6 Mile
Transmit Time: 500 msec
Wiring Connection: Terminal Block
Operating Temperature: -10 to 130 ºF (-23 to 54 ºC)

Available Models (For USA/Canada Only)
Model Number Description
WVC27-MS-10A Wireless Transmitter/Reciever Matched Set - 10 Amp Control Relay
WVC27-MS-20A Wireless Transmitter/Reciever Matched Set - 20 Amp Control Relay

 Note: Continued product improvements make specifications subject to change without notice.

This product is approved for use in USA and Canada only.
