 Wireless Switch Remote Control System


Wireless Tank Switch / Pump Up/Down Control System


Wireless Remote Control Pump System Series: WPUCS-24-XL

Features

    Wireless Bridge Between Tank Switches & Pump

    System Works with 2 Dry-contact Level Switches

    Up To 1 Mile (LOS) Transmit/Receive Distance

    Dual Switch Input for Pump Up/Down Operation

    Weatherproof NEMA 4X Rated Enclosures

    Transmitter Can Be Hardwired, Battery or Solar

    Receiver Features DPDT Control & Latching Relay

    License Free Point-to-point Radio Operation

Applications

Pump Up / Down Control, Motor Control, Remote Control Irrigation Systems


Description

Model WPUCS-24-XL Wireless Level Switch/ Pump Control System provides a wireless bridge between two dry-contact level switches and a set of latching and control relays connected to a pump. When a tank upper level switch activates dues to a lowering of the tanks water level a signal is sent via a license free radio signal to the receiver unit up to 6 miles (Line-of-site) away to energize the latching relay. Once the water level reaches the bottom of the tank the second float switch is activated and the signal to the receiver turns on the pump control relay. As the water level rises again the pump is held on by the latching relay. Once the water level reached the top of the take and deactivated the top level switch the latching relay opens, this in turn also causes the control relay to drop out and turn of the pump. The system resets itself and waits for the next pump up/down cycle.

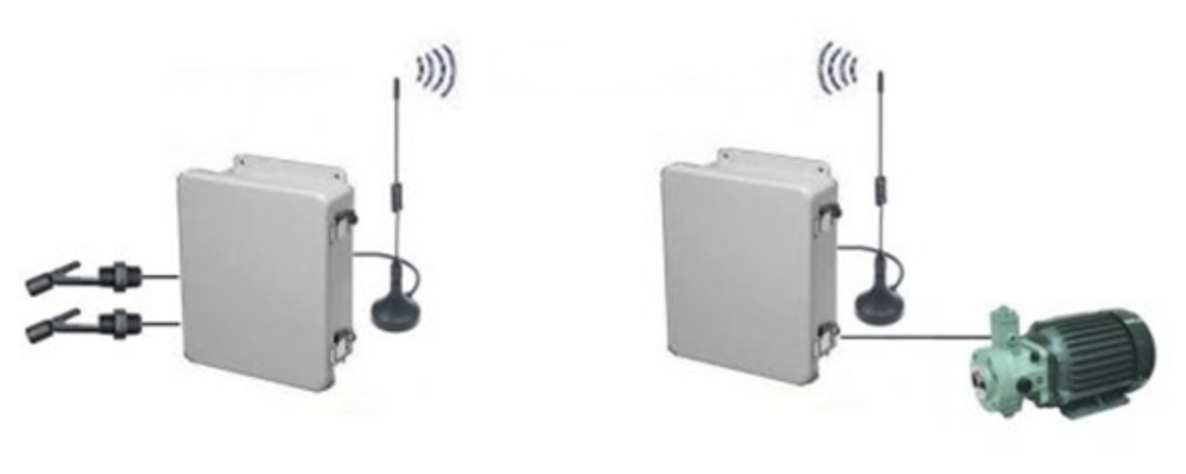

Application Example: Two float Switches Controlling Pump Up / Drain Down Operation
wireless_control_system

General Specifications - (See full data sheet)
Radio Frequency: 2.4GHz
Transmit Power: 63 mW
Transmit/Recieve Distance: Up to 1 Mile
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Operating Temperature: -10 to 130 F (-23 to 54 C)
wireless switch control relay system wireless switch control relay system
    Wireless Switch Transmitter             Wireless Relay Control Receiver

Transmitter Specifications
Transmitter Input: Dry-contact Switches
Radio Frequency: 2.4GHz
Transmit Power: 63 mW
Transmit/Recieve Distance: Up to 1 Mile
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Operating Power: Can be Hardwired, Battery or Solar
Hardwired: 12V DC @ 350mA or 120VAC 50/60 Hz
Battery: 12V Battery (See Manual For Battery Life Estimates)
Optional Solar: Includes Panel, Battery, Charge Controller

Receiver/Relay Box Specifications
Operating Power: 12V DC @ 450mA or 120VAC 50/60 Hz
RF Input Impedance: 50 Ohm nominal
Control Relay: DPDT, 10A 120/240VAC

Available Models (For USA/Canada Only)
Model Number Description Switch Inputs
WPUCS-24-XL Wireless Level Switch/ Pump Control System 1

 Note: Continued product improvements make specifications subject to change without notice.

This product is approved for use in USA and Canada only.
