 Wireless Switch Remote Control System


Wireless 2-Way Remote Control Transceiver Set


Wireless Remote Control Pump System Series: WPC2W900-XL

Features

    2-Way Bridge Between Switches & Relays

    Activation With Any Dry-contact switch

    Up To 6 Mile (LOS) Transmit/Receive Distance

    Control Pump, Valve, Motor or Lighting

    Can Be Hardwired, Battery or Solar Powered

    Both Sides Have Control Inputs & Relays

    License Free Point-to-point Radio Operation




Applications

Pump, Valve or Motor Control, Lighting Systems, Remote Control Irrigation Systems


Description

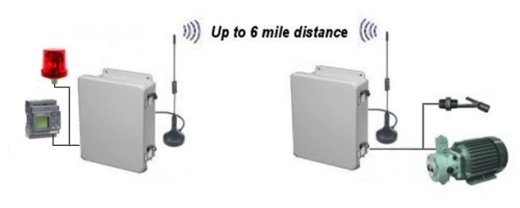

Series WPC2W900-XL Wireless 2-Way Switch/Control System provides a wireless bridge between any type dry-contact switches and control relays. When a switch connected to one of the transceiver units opens or closes signals are sent via a license free radio signal to a corresponding unit up to 6 miles (Line-of-site) away. When the corresponding unit receives the proper signal a control relay inside the panel is energized to operate a pump, valve, motor or alarm.


wireless_control_system wireless_control_system

General Specifications
Radio Frequency: 900 MHz
Transmit Power: 100 mW
Transmit/Recieve Distance: With Included Antennas: Up to 2 Miles (LOS)
With Optional Antennas: Up to 6 Miles (LOS)
Transmit Time: 250 msec
Wiring Connection: Terminal Blocks
Operating Temperature: -10 to 130 ºF (-23 to 54 ºC)
Enclosures: NEMA 4X, PC/PBT Blended Plastic NEMA 4X, PC/PBT Blended Plastic

wireless remote control system

Transceiver Specifications
Main Control Input: Dry-contact Switch
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Control Relay(s): See Model Table
Operating Power: Can be Hardwired, Battery or Solar
Hardwired: 11 to 13Vdc @ 350mA or 120VAC 50/60 Hz
Battery: 12V Battery (See Manual For Battery Life Estimates)
Optional Solar: Includes Panel, Battery, Charge Controller

Available Transceiver Models (For USA/Canada Only)
Model Number Control Inputs Relay Capacity Description Relays
WPC2W900-XL-1-5A 1/1 120/240VAC, 5 Amp, SPDT Transceiver Set 1/1
WPC2W900-XL-2-5A 2/2 120/240VAC, 5 Amp, SPDT Transceiver Set 2/2
WPC2W900-XL-4-5A 4/4 120/240VAC, 5 Amp, SPDT Transceiver Set 4/4
WPC2W900-XL-8-5A 8/8 120/240VAC, 5 Amp, SPDT Transceiver Set 8/8
WPC2W900-XL-1-10A 1/1 120/240VAC, 10 Amp, SPDT Transceiver Set 1/1
WPC2W900-XL-2-10A 2/2 120/240VAC, 10 Amp, SPDT Transceiver Set 2/2
WPC2W900-XL-4-10A 4/4 120/240VAC, 10 Amp, SPDT Transceiver Set 4/4
WPC2W900-XL-8-10A 8/8 120/240VAC, 10 Amp, SPDT Transceiver Set 8/8
WPC2W900-XL-1-20A 1/1 120/240VAC, 20 Amp, SPDT Transceiver Set 1/1
WPC2W900-XL-2-20A 2/2 120/240VAC, 20 Amp, SPDT Transceiver Set 2/2
WPC2W900-XL-4-20A 4/4 120/240VAC, 20 Amp, SPDT Transceiver Set 4/4
WPC2W900-XL-8-20A 8/8 120/240VAC, 20 Amp, SPDT Transceiver Set 8/8
WPC2W900-XL-1-30A 1/1 120/240VAC, 30 Amp, SPST Transceiver Set 1/1
WPC2W900-XL-2-30A 2/2 120/240VAC, 30 Amp, SPST Transceiver Set 2/2
WPC2W900-XL-4-30A 4/4 120/240VAC, 30 Amp, SPST Transceiver Set 4/4
WPC2W900-XL-8-30A 8/8 120/240VAC, 30 Amp, SPST Transceiver Set 8/8

 Note: Continued product improvements make specifications subject to change without notice.

 Note: Models are also available with SSR's (Solid State Relays)

 This product is approved for use in USA and Canada only.
