 Wireless Remote Control System


Long Distance Wireless Remote Control Matched Transmitter/Receiver Set


Wireless Remote Control System Series: WCS900-MS

Features

    Up To 6 Miles Wireless Operation

    Uses License Free RF Technology

    Connect Switches or PLC To Activate

    5, 10 or 30 Amp Control Relays

    2-Way Communication with Verification

    Transmitter Displays Status of Remote Relays

    AC or DC Power Operation

    Models with 1, 2 or 4 Control Lines

    Weatherproof NEMA 4X Rated Enclosures




Applications

    Pumps, Motorized Valves, Electric Gates, Lighting and Irrigation Systems


Description

WCS900-MS - Wireless Remote Control System allows for remotely activating equipment from a distance of up to 6 miles using wireless 2-way communication. The transmitter is equipped with contact closure inputs, used to control relays on the receiver unit. Models are available with 5, 10 or 30 Amp mechanical relays. Transmitter can be activated with dry-contact switches or connected to a PLC for automated control. Approved for use in USA, Canada.

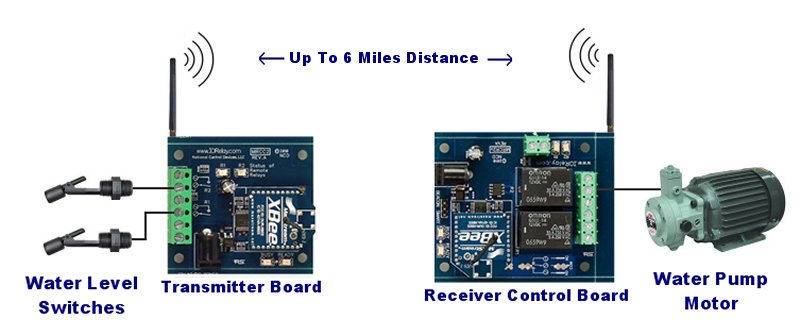

Typical Long Distance Wireless Remote Control Application
wireless_control_system

General Specifications
Radio Frequency: 900MHz
Transmit Power: 100 mW
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Operating Temperature: -10 to 130 ºF (-23 to 54 ºC)

Wireless Transmitter/Receiver Board Set Example
wireless_control_system

Available 900MHz Models (For USA and Canada Only)
Model Number Description
WCS900-MS-1-5A Wireless Transmitter/Reciever Set - 1 Control Line, 5 Amp SPDT Control Relay
WCS900-MS-1-10A Wireless Transmitter/Reciever Set - 1 Control Line, 10 Amp SPDT Control Relay
WCS900-MS-1-30A Wireless Transmitter/Reciever Set - 1 Control Line, 30 Amp SPST Control Relay
WCS900-MS-2-5A Wireless Transmitter/Reciever Set - 2 Control Lines, 5 Amp SPDT Control Relays
WCS900-MS-2-10A Wireless Transmitter/Reciever Set - 2 Control Lines, 10 Amp SPDT Control Relays
WCS900-MS-2-30A Wireless Transmitter/Reciever Set - 2 Control Lines, 30 Amp SPST Control Relays
WCS900-MS-4-5A Wireless Transmitter/Reciever Set - 4 Control Lines, 5 Amp SPDT Control Relays
WCS900-MS-4-10A Wireless Transmitter/Reciever Set - 4 Control Lines, 10 Amp SPDT Control Relays
WCS900-MS-4-30A Wireless Transmitter/Reciever Set - 4 Control Lines, 30 Amp SPST Control Relays

 Note: Continued product improvements make specifications subject to change without notice.
