 Wireless Switch Remote Control System


Wireless 2-Way Remote Control System


Wireless Remote Control System Series: WCS2W24-OC

Features

    Wireless 2-Way Bridge Between Switch & Relay

    Activate Transceiver with Any Dry-contact Switch

    Up To 1 Mile (LOS) Transmit/Receive Distance

    Models Available With 1 or 2 Control Lines

    Receiver Provides Open-collector Control Output

    Transmitter Powered By AC or DC Supply

    Easy To Install NEMA 4X Enclosures

    License Free Point-to-point Radio Operation

    Sold As Dual Transceiver Matched Set



Applications

Pump, Valve or Motor Control, Lighting Systems, Remote Control Irrigation Systems


Description

The WCS2W24-OC Series Wireless 2-Way Remote Control System allows for remotely activating equipment from a distance of up to 1 mile away using license free wireless 802.15.4 communication. Each transceiver in the set is equipped with up to two contact closure inputs that are used to control open-collector outputs on the oposing unit. Models are available with 1 or 2 control lines. Control signals can be activated with dry-contact switches or connected to a PLC for automated control.

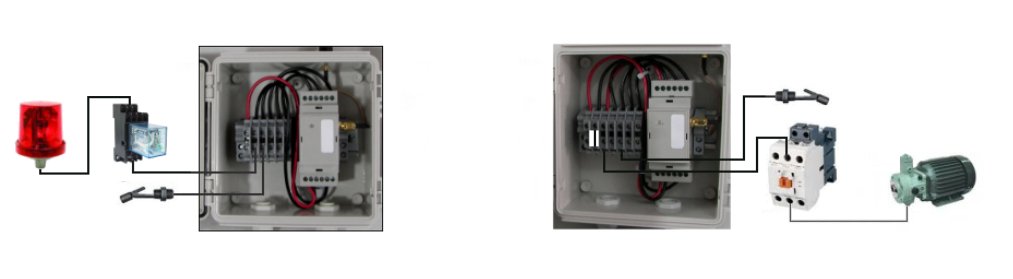

Level Switches Activating Remote Water Pump with Alarm Feedback
wireless_control_system

General Specifications
Radio Frequency: 2.4GHz
Regulatory: FCC Part 95 (No license required)
Transmit/Recieve Distance: US/CA Model: Indoor/Urban 300ft, Line-of-site 1 Mile
EU Model: Indoor/Urban 100ft, Line-of-site 300ft
Transmitter/Receiver Code Matching: Factory set
Antennas: 7dbi, Omni-directional (Included)
Antenna Connection: RP-SMA
Wiring Connection: Din-rail Terminal Blocks
Operating Temperature: -22 to 113 ºF (-30 to 45 ºC)
Regulatory Approvals: FCC(USA): OUR-XBEEPRO, IC (Canada): 4214A-XBEEPRO
Enclosures: NEMA 4X. ABS/PC Blend Plastic

Transceiver Specifications
RF Power Output: 63mW (10mW EU Models)
RF Output Impedance: 50 Ohm nominal
Transmit Time: 250 ms
Operating Power: 5-12V DC or 120V AC
Control Input Type: Dry-contact
Receive Sensitivity: -100 dBm
Control Output: Open-collector, 12V DC, 100mA Max

Available Models
Model Number Description Control Lines
WCS2W24-OC-1 Wireless 2-Way Remote Control Transmitter/Receiver Set (USA/CANADA) 1
WCS2W24-OC-1-EU Wireless 2-Way Remote Control Transmitter/Receiver Set (EU) 1
WCS2W24-OC-2 Wireless 2-Way Remote Control Transmitter/Receiver Set (USA/CANADA) 2
WCS2W24-OC-2-EU Wireless 2-Way Remote Control Transmitter/Receiver Set (EU) 2

 Note: Continued product improvements make specifications subject to change without notice.
