 Wireless Control System

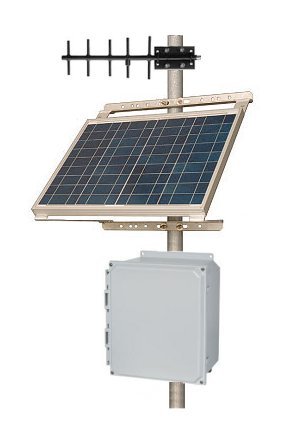

900 MHz Solar Powered Wireless Remote Control System


wireless_control_system Series: SPWCS-900

Features

    Up To 6 Mile Wireless Operation

    10 or 20 Amp Control Relays

    Completely Powered by Solar Power System

    Models with 2 or 4 Control Lines

    Weatherproof NEMA Rated Enclosures

    Preassembled, Prewired, Ready-To-Install

    No Configuration or Programming Required


Applications

    Pump, Valve & Motor Control

    Irrigation Systems

    Lighting Applications

    Remote Door & Gate Control



Description

SPWCS-900 Series Solar Powered Industrial Wireless Control System uses 900 MHz technology to create a long range remote wireless control system that reliably controls devices at distances up to 6 miles away (line-of-site). A perfect solution for irrigation systems, water pumps, control valves, doors, gates and lighting applications in areas where standard utility power is not available or costly to install.
All models include a complete solar power system and lightning/surge protection.

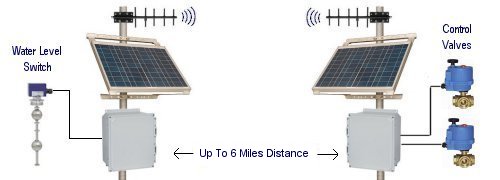

Typical Solar Powered Wireless Remote Control Application
wireless_control_system

General Specifications
Radio Frequency: 900 MHz
Transmit Power: 100 mW
Transmit Time: 250 msec
Wiring Connection: Din-rail Terminal Blocks
Operating Temperature: -10 to 130 ºF (-23 to 54 ºC)

Transmitter Models
Model Number Description
SPWCS-900-TRAN-1 Solar Powered Wireless Transmitter - 1 Control Line
SPWCS-900-TRAN-2 Solar Powered Wireless Transmitter - 2 Control Lines
SPWCS-900-TRAN-4 Solar Powrered Wireless Transmitter - 4 Control Lines

Receiver Models
Model Number Description
SPWCS-900-REC-1-10A Solar Powered Wireless Reciever - 1 Control Line, 10 Amp Control Relay
SPWCS-900-REC-1-20A Solar Powered Wireless Reciever - 1 Control Line, 20 Amp Control Relay
SPWCS-900-REC-1-40A Solar Powered Wireless Reciever - 1 Control Line, 40 Amp Control Relay
SPWCS-900-REC-2-10A Solar Powered Wireless Reciever - 2 Control Line, 10 Amp Control Relays
SPWCS-900-REC-2-20A Solar Powered Wireless Reciever - 2 Control Line, 20 Amp Control Relays
SPWCS-900-REC-2-40A Solar Powered Wireless Reciever - 2 Control Line, 40 Amp Control Relays
SPWCS-900-REC-4-10A Solar Powered Wireless Reciever - 4 Control Line, 10 Amp Control Relays
SPWCS-900-REC-4-20A Solar Powered Wireless Reciever - 4 Control Line, 20 Amp Control Relays
SPWCS-900-REC-4-40A Solar Powered Wireless Reciever - 4 Control Line, 40 Amp Control Relays

 Note: Continued product improvements make specifications subject to change without notice.
