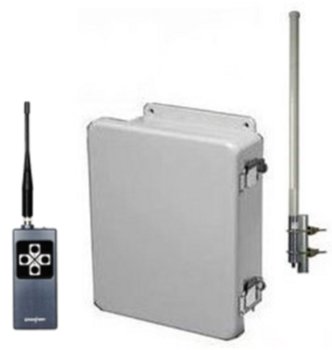

Wireless Remote Control Pump System
|
|
|
|
Wireless Industrial Remote Control System
with Handheld Transmitter
|
|
Series: WHHC-27
Features
Wireless Bridge Between Handheld & Relay Panel
Rugged, Portable Handheld Transmitter
Up To 2 Mile (LOS) Transmit/Receive Distance
Use To Control Pumps, Valves, Motors or Lighting
Available With 1, 2 or 4 Control Lines
Receiver Panel Unit Features Control Relays
License Free Point-to-point Radio Operation
|
Applications
Remote Control Crane or Winch System,
Fence or Gate Control,
Level & Flow Control & Irrigation Systems,
Water Pump & Valve Motor Control
Description
Series WHHC-27 Wireless Remote Control System provides a wireless bridge between a handheld transmitter
and a relay receiver control panel. When a switch on the handheld transmitter is pressed signals are sent via a
license free radio signal to a receiver unit up to 2 miles (Line-of-site) away. When the control panel receives
the proper wireless signals from the handheld transmitter control relays inside the panel are energized to
operate remote equipment such as a pump, valve, motor, wench or gate.
|
|

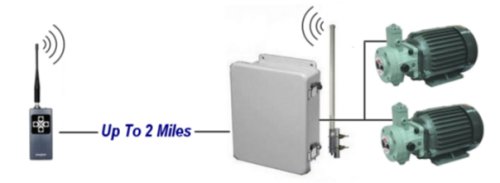

Application Example: Controlling 2 Remote Water Pumps
|
|
General Specifications
|
|
RF Impedance:
|
50 Ohm nominal
|
|
Transmitter/Receiver Code Matching:
|
65,536 Codes
|
|
Operating Temperature:
|
-4 to 140 ºF (-20 to 60 ºC)
|
|
RF Control Distance:
|
Up to 2 Miles (LOS) Line-of-site
|
|
Regulatory:
|
FCC Part 95 (No License required)
|
|
Handheld Transmitter Specifications
|
|
Frequency:
|
27.255 MHz ± .0025% (center frequency)
|
|
Bandwidth:
|
6 KHz
|
|
RF modulation:
|
FSK ± 2 KHz nominal
|
|
RF output impedance:
|
50 Ohm nominal
|
|
Data encoding format:
|
EMR
|
|
Power output:
|
2W minimum
|
|
Batteries:
|
Two 9 Vdc batteries
|
|
Antenna:
|
8-inch antenna (supplied)
|
|
Loop response time:
|
500 ms
|
|
Transmit time:
|
1 second
|
|
Code transmissions:
|
Alarm and low battery
|
|
Control Type:
|
Push-button
|
|
Housing:
|
Grey, weather-resistant, high impact plastic
|
|
Dimensions:
|
2.5 x 4.75 x 1.25”
|
|
Receiver Relay Controller Specifications
|
|
Operating Power:
|
120V AC 50/60 Hz or 12V DC
|
|
Control Relay(s):
|
See Model Table
|
|
Wire Connections:
|
Terminal Blocks (14 – 24 AWG)
|
|
Enclosure:
|
NEMA 4X, Poly/Fiberglas Blend
|
|
Available Handheld Transmitters
|
|
Model Number
|
Description
|
Control Lines
|
|
WHHC-27-TRAN1
|
1-Line Handheld Wireless Transmitter
|
1
|
|
WHHC-27-TRAN2
|
2-Line Handheld Wireless Transmitter
|
2
|
|
WHHC-27-TRAN4
|
4-Line Handheld Wireless Transmitter
|
4
|
|
Available Relay Control Panels
|
|
Model Number
|
Relay Capacity
|
Description
|
Control Lines
|
|
WHHC-27-REC1
|
120/240VAC, 10 Amp, DPDT
|
1-Line Relay Receiver Control Panel
|
1
|
|
WHHC-27-REC2
|
120/240VAC, 10 Amp, DPDT
|
2-Line Relay Receiver Control Panel
|
2
|
|
WHHC-27-REC4
|
120/240VAC, 10 Amp, DPDT
|
4-Line Relay Receiver Control Panel
|
4
|
|
Note: Continued product improvements make specifications subject to change without notice.
|
This product is approved for use in USA and Canada only.
|
