 Wireless Remote Control Transmitter/Receiver Set


Industrial Wireless Remote Control System
with 2-way Switch/Relay Operation


Wireless Remote Control Transmitter System Model: WIDXL-2W-900

Features

    2-Way Wireless Bridge Between Switch & Relay

    Activate Either Side with Any Dry-contact Switch

    Models Available With 1 or 2 Control Lines

    Up To 6 Miles Line-of-site Transmit/Receive Distance

    Receiver Provides Open-collector Control Output

    Transmitter Powered By DC Supply or 120V AC

    NEMA 4, 4X Powder Coated Aluminum Enclosures

    Pre-configured, Ready-To-Operate

    Sold As Transceiver Matched Pair

    License Free Radio Operation


Applications

Tank Level Monitoring, Pump or Motor Control, Valve Activation, Gate or Lighting Control


Description

The WIDXL-2W-24 Series Wireless Remote Control System with 2-way operation allows for remotely activating equipment from a distance of up to1 mile away using license free wireless 802.15.4 communication. Each unit is equipped with up to 2 contact closure inputs that are used to control open-collector outputs on the opposite unit of the matched pair. Models are available with 1 or 2 control lines. Units can be activated with dry-contact switch or connected to a PLC for automated control and feedback.

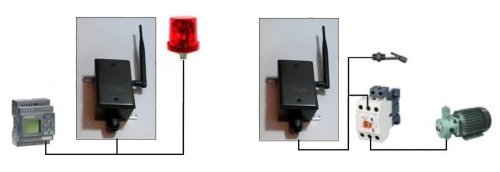

PLC Providing Pump Control with Level Switch Alarm Feedback Signal
wireless remote control switch relay

General Specifications
Radio Frequency: ISM 2.4GHz
Control Lines: 1 or 2
Transceiver Code Matching: Factory set
Antenna Connection: RP-SMA
Wiring Connection: Terminal Blocks
Transmit/Receive Distance
(US/CA Model):
Indoor/Urban 300ft, Line-of-site 1 Mile
Transmit/Receive Distance
(EU Model):
Indoor/Urban 100ft, Line-of-site 300ft
Operating Temperature: -22 to 113 ºF (-30 to 45 ºC)
Enclosure: NEMA 4, 4X Powder Coated Aluminum
Antennas: 5dbi, Omni-directional (Included)

Transceiver Specifications
Control Input Type: Switch (Dry-contact)
RF Power Output: 63mW (10mW -EU Models)
RF Data Rate: 250 Kbps
RF Input/Output Impedance: 50 Ohm nominal
Operating Power: 6 - 12V DC @ 3W max
Control Output: Open-collector, 24V DC, 100mA Max

Regulatory Approvals
Regulatory: FCC Part 95 (No license required)
FCC(USA): OUR-XBEEPRO
IC (Canada): 4214A-XBEEPRO

Available Models
Model Number Description Control Lines
WIDXL-2W-24-1 Industrial 2-Way Wireless Remote Control Transceiver Set (USA/CANADA) 1
WIDXL-2W-24-2 Industrial 2-Way Wireless Remote Control Transceiver Set (USA/CANADA) 2
Each Wireless Transceiver Pair includes 7dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.

Note: Continued product improvements make specifications subject to change without notice.
This product is approved for use in USA and Canada only.
