Wireless Relative Humidity (RH) Transmitter
|
|
|
|
Wireless Relative Humidity (RH) Transmitter
|
|
Model: WRHX-WM3-900
Features
Wireless Bridge Between RH Sensor and Instrument
0-100% RH Measurement - Accuracy Up To +/- 3%
Receiver Models 0-5, 0-10V DC or 4-20mA Output
Up To 6 Miles Line-of-site Transmit/Receive Distance
Powered by any 12-24V DC Supply
Rugged Painted Aluminum Enclosures
Pre-configured, Ready-To-Operate
Sold As Transmitter/Receiver Matched Set
License Free Radio Operation
|
Applications
Relative Humidity Measurement
Remote Sensor Monitoring & Control
Air Quality Monitoring
Description

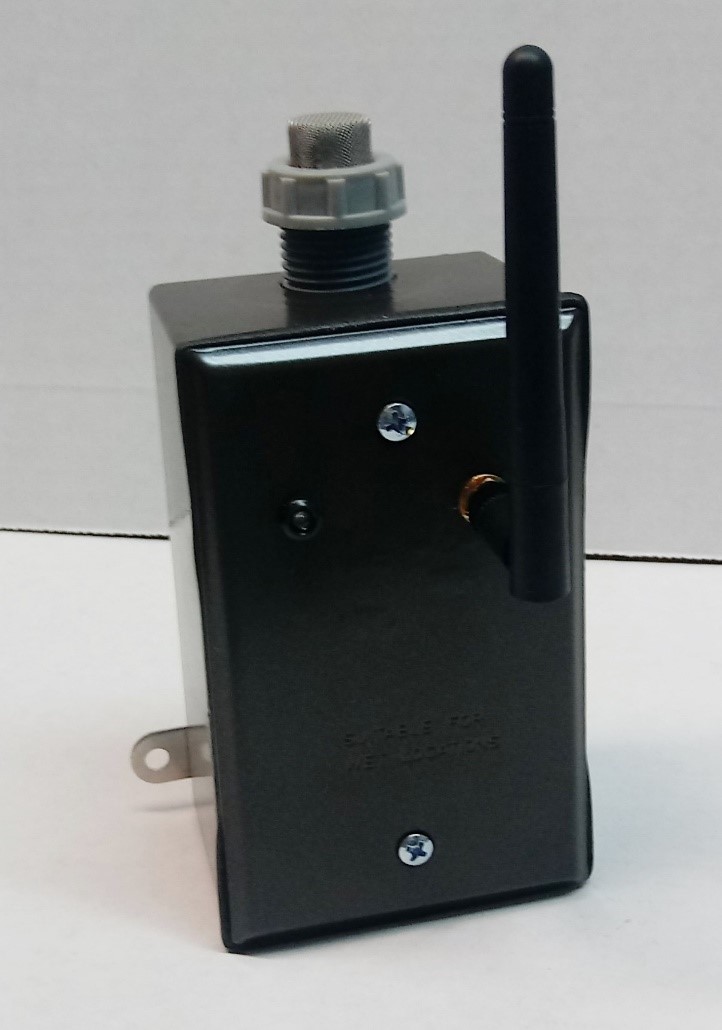

Model WRHX-WM3-900 Wireless Relative Humidity Transmitter
features a factory programmed transmitter / receiver matched set.
The transmitter sends RH sensor measurements to a base receiver up
to 6 miles away using license free 900 MHz RF technology. The receiver base provides analog voltage or current output. Each Transmitter/Receiver set is factory coded as a matched set and requires no field programming.
|
General Specifications
|
|
Radio Frequency:
|
900 MHz
|
|
Regulatory:
|
FCC Part 15 (No license required)
|
|
Transmitter/Receiver Code Matching:
|
Factory set
|
|
Antenna Connection:
|
RP-SMA
|
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance
(with included antennas):
|
Indoor/Urban 1000ft, Line-of-site 1 Mile
|
Transmit/Receive Distance
(with optional antennas):
|
Indoor/Urban 1600ft, Line-of-site 6 Miles
|
|
Operating Temperature:
|
-22 to 113 ºF (-30 to 45 ºC)
|
|
Enclosure:
|
Rugged Painted Aluminum Enclosure
|
|
Antennas:
|
7dbi, Omni-directional (Included)
|
|
Transmitter Specifications
|
|
Input:
|
RH Sensor
|
|
Measurement Range:
|
0-100% RH
|
|
Measurement Accuracy:
|
+/- 3% @23 °C
|
|
RF Power Output:
|
100mW
|
|
RF Data Rate:
|
10 kbps
|
|
RF Output Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
Receiver Specifications
|
|
Analog Output:
|
0-5V, 0-10V or 4-20mA (by model)
|
|
Receive Sensitivity:
|
-100 dBm
|
|
RF Input Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
RF Signal Loss Result:
|
Holds output at last reading.
|
|
Regulatory Approvals
|
|
Regulatory:
|
FCC Part 15 (No license required)
|
|
FCC(USA):
|
MCQ-XBEEXSC
|
|
IC (Canada):
|
1846A-XBEEXSC
|
|
Transmitter Operation
|
The wireless transmitter reads data from a RH sensor and then sends the measured data over the air to a remote location. The measured relative humidity signals are converted to digital packets and then transmitted via a license free radio transmission to a waiting control receiver.
|
|
Receiever Operation
|
The wireless receiver decodes any incoming radio packets and converts them into linear voltage or current output signals for interfacing with PLCs, Controllers, Data Loggers or Process Measurement Instruments. |
|
Available Models
|
|
See Full Data Sheet For Additional Specifications.
|
Data Sheet
|
|
Each Wireless RH Transmitter/Receiver Set includes 7dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.
Note: Continued product improvements make specifications subject to change without notice.
|
|
This product is approved for use in North America.
|
