Wireless Level Sensor Transmitter/Receiver Set
|
|
|
|
Continuous Level Sensor with Wireless Transmitter / Analog Receiver System
|
|
MODEL: WLTX-900
Features
Wireless Bridge Between Sensor & Instrument
Sensor Available from 8 to 60 inches in Length
Up To 3 Miles Line-of-site Max Distance
Receiver Provides 4-20mA or 1-5V DC Output
Powered By 12-24V DC Supply
NEMA 4X Enclosures
Pre-configured, Ready-To-Operate
Sold As Sensor/Transmitter/Receiver Matched Set
License Free Radio Operation
|
Applications
Pool or Jacuzzi Water Level Monitoring,
Process Control & Instrumentation,
Tank Level Measurement
Description

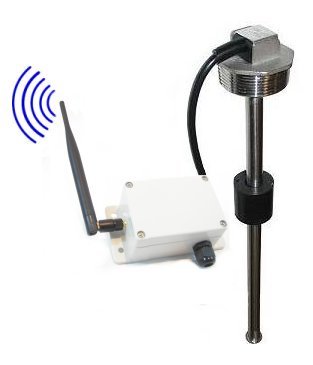

Model WLTX-900 Continuous Level Sensor with wireless Transmitter/Receiver
set operates with a vertical mounted, stainless steel float sensor that is ideal
for monitoring liquid height in many applications. The sensor and 900Mhz wireless
transmitter combination accomplishes remote tank level measurement by sending
a wireless current or voltage output signal up to 3 miles away that corresponds to the position of the float as it travels up and down the sensor's shaft. You can connect the wireless receiver output to a process meter or PLC to control a pump, valve or alarm unit. These level sensors are rugged, reliable and available in a wide variety of lengths to 60".
|
|

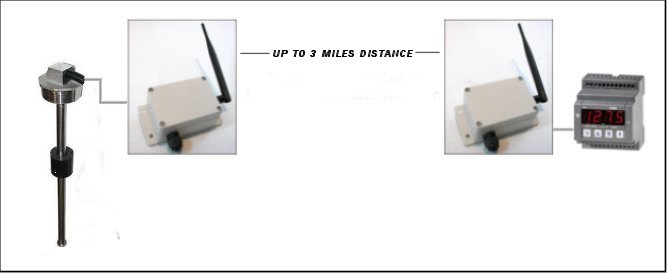

SAMPLE APPLICATION: LEVEL SENSOR SENDING WIRELESS MEASUREMENTS TO REMOTE PLC
|
|
Sensor Specifications
|
|
Measurement Range:
|
8 to 60" (203 to 1524mm) By selected model
|
|
Accuracy:
|
+/- 0.25% of span
|
|
Orientation/Mount Angle:
|
+/- 18° from vertical
|
|
Process Temperature Range:
|
-40 to 85°C (-40 to 185°F)
|
|
Mounting:
|
Sensor Mount: 1.5" NPT
|
|
Shaft/Body Material:
|
316 SS
|
|
General Transmitter/Receiver Specifications
|
|
Radio Frequency:
|
900MHz
|
|
Regulatory:
|
FCC Part 15 (No license required)
|
|
Transmitter/Receiver Code Matching:
|
Factory set
|
|
Antenna Connection:
|
RP-SMA
|
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance
(with included antennas):
|
with included antennas: Urban 1000ft, Line-of-site 1 Miles.
|
Transmit/Receive Distance
(with optional antennas):
|
with included antennas: Urban 1600ft, Line-of-site 3 Miles.
|
|
Operating Temperature:
|
-22 to 113 ºF (-30 to 45 ºC)
|
|
Enclosure:
|
Din-rail mount (35mm), ABS/PC Blend Plastic or NEMA 4X PCT
|
|
Antennas:
|
5dbi, Omni-directional (Included)
|
|
Transmitter Specifications
|
|
Input Signal:
|
WLTX Level Sensor
|
|
RF Power Output:
|
100mW
|
|
RF Data Rate:
|
10 kbps
|
|
RF Output Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 2W max
|
|
Receiver Specifications
|
|
Receive Sensitivity:
|
-100 dBm
|
|
RF Input Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
Analog Output:
|
4-20mA, 1-5VDC (Field Selectable)
|
|
Regulatory Approvals
|
|
Regulatory:
|
FCC Part 15 (No license required)
|
|
FCC(USA):
|
MCQ-XBEEXSC
|
|
IC (Canada):
|
1846A-XBEEXSC
|
|
Available Models
|
|
|
Each Wireless Analog Transmitter/Receiver Set includes Sensor, Sensor Cable, 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.
Note: Continued product improvements make specifications subject to change without notice.
|
|
This product is approved for use in North America.
|
