Wireless Level Sensor Transmitter/Receiver Set
|

|
Continuous Level Sensor with Wireless Transmitter / Analog Receiver System
|
MODEL: WLTX-24
Features
    Wireless Bridge Between Sensor & Instrument
    Sensor Available from 8 to 60 inches in Length
    Up To 1 Mile Line-of-site Max Distance
    Receiver Provides 4-20mA or 1-5V DC Output
    Powered By 12-24V DC Supply
    NEMA 4X Enclosures
    Pre-configured, Ready-To-Operate
    Sold As Sensor/Transmitter/Receiver Matched Set
    License Free Radio Operation
|
Applications
Pool or Jacuzzi Water Level Monitoring,
Process Control & Instrumentation,
Tank Level Measurement
Description
Model WLTX-24 Continuous Level Sensor with wireless Transmitter/Receiver set operates with a vertical mounted, stainless steel float sensor that is ideal for monitoring liquid height in many applications. The sensor and 2.4GHz wireless transmitter combination accomplishes remote tank level measurement by sending a wireless current or voltage output signal up to 1 mile away that corresponds to the position of the float as it travels up and down the sensor's shaft. You can connect the wireless receiver output to a process meter or PLC to control a pump, valve or alarm unit. These level sensors are rugged, reliable and available in a wide variety of lengths to 60".
|

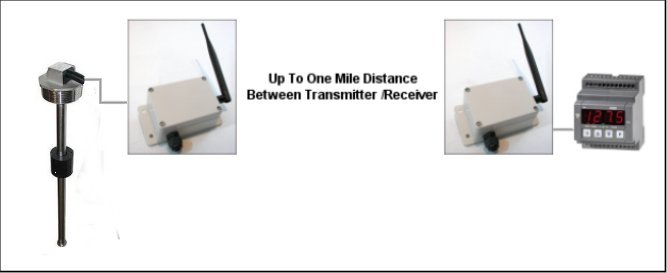

SAMPLE APPLICATION: LEVEL SENSOR SENDING WIRELESS MEASUREMENTS TO REMOTE PLC
|
|
Sensor Specifications
|
Measurement Range:
|
8 to 60" (203 to 1524mm) By selected model
|
Accuracy:
|
+/- 0.25% of span
|
Orientation/Mount Angle:
|
+/- 18° from vertical
|
Process Temperature Range:
|
-40 to 85°C (-40 to 185°F)
|
Mounting:
|
Sensor Mount: 1.5" NPT
|
Shaft/Body Material:
|
316 SS
|
|
General Transmitter/Receiver Specifications
|
Radio Frequency:
|
ISM 2.4GHz
|
Regulatory:
|
FCC Part 95 (No license required)
|
Control Lines:
|
1, 2 or 4
|
Transmitter/Receiver Code Matching:
|
Factory set
|
Antenna Connection:
|
RP-SMA
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance (with included antennas):
|
Indoor/Urban 100ft, Line-of-site 600ft
|
Transmit/Receive Distance (with optional antennas):
|
Indoor/Urban 300ft, Line-of-site 1 Mile
|
Operating Temperature:
|
-22 to 113 ºF (-30 to 45 ºC)
|
Enclosure:
|
Din-rail mount (35mm), ABS/PC Blend Plastic or NEMA 4X PCT
|
Antennas:
|
7dbi, Omni-directional (Included)
|
|
Transmitter Specifications
|
Input Signal:
|
WLTX Level Sensor
|
RF Power Output:
|
63mW
|
RF Data Rate:
|
250 kbps
|
RF Output Impedance:
|
50 Ohm nominal
|
Operating Power:
|
12 - 24V DC @ 2W max
|
|
Receiver Specifications
|
Receive Sensitivity:
|
-100 dBm
|
RF Input Impedance:
|
50 Ohm nominal
|
Operating Power:
|
12 - 24V DC @ 3W max
|
Analog Output:
|
4-20mA, 1-5VDC (Field Selectable)
|
|
Regulatory Approvals
|
Regulatory:
|
FCC Part 95 (No license required)
|
FCC(USA):
|
OUR-XBEEPRO
|
IC (Canada):
|
4214A-XBEEPRO
|
|
Available Models
|
|
Each Wireless Analog Transmitter/Receiver Set includes Sensor, Sensor Cable, 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.
Note: Continued product improvements make specifications subject to change without notice.
|
This product is approved for use in North America.
|
