 Wireless Remote Control Transmitter/Receiver Set


Industrial Wireless Analog Transmitter/Receiver Set


Wireless Remote Control Transmitter System SERIES: WACSL-24

Features

    RF Bridge Between Analog Signal & Instrument

    Models with 0-3V DC, 0-5V DC or 4-20mA Input/output

    One Built-in Two-way Contact Closure Control Line

    Sold as Transmitter/Receiver Factory Match Set

    Up To 1 Mile Line-of-site Transmit/Receive Distance

    Adds Wireless Capability to Any Existing System

    12-24V DC or 120V AC with Optional Power Modules

    NEMA 4X Plastic PCT Enclosures

    License Free Point-to-point Radio Operation

Applications

Tank Level Monitoring, Valve Positioning, Process Controls & Instrumentation, Add Wireless Capability to Existing Process Application


Description

The WACSL-24 Series Wireless Analog Control System allows for remotely monitoring or controlling equipment from a distance up to 1 mile away using license free wireless 2.4GHz 802.15.4 communication. Each set features either one or two analog signal inputs and outputs. Both the transmitter and receiver are equipped with one contact closure input that is used to control an open-collector output on the opposing unit

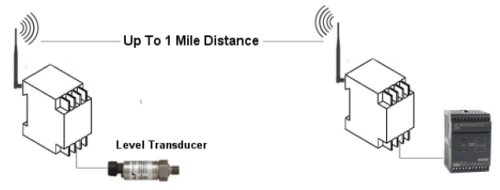

LEVEL SENSOR SENDING WIRELESS 4-20mA SIGNAL TO REMOTE INSTRUMENT
wireless remote control switch relay

General Specifications
Radio Frequency: ISM 2.4GHz
Regulatory: FCC Part 95 (No license required)
Transmitter/Receiver Code Matching: Factory set
Antenna Connection: RP-SMA
Wiring Connection: Terminal Blocks
Transmit/Receive Distance
(with included antennas):
Indoor/Urban 100ft, Line-of-site 600ft
Transmit/Receive Distance
(with optional antennas):
Indoor/Urban 300ft, Line-of-site 1 Mile
Operating Temperature: -22 to 113 F (-30 to 45 C)
Enclosure: NEMA 4, 4X PCT Plastic
Antennas: 5dbi, Omni-directional (Included)

Transmitter Specifications
Analog Inputs: 0-3V DC, 0-5V DC or 4-20mA (See model Number)
Switch Control Input/Output Lines: 1 Dry-contact input, 1 Open-collector output
RF Power Output: 63mW
RF Data Rate: 250 kbps
RF Output Impedance: 50 Ohm nominal
Operating Power: 12 - 24V DC @ 2W max

Receiver Specifications
Analog Outputs: 0-3V DC, 0-5V DC or 4-20mA (See model Number)
Switch Control Input/Output Lines: 1 Dry-contact input, 1 Open-collector output
Receive Sensitivity: -100 dBm
RF Input Impedance: 50 Ohm nominal
Operating Power: 12 - 24V DC @ 3W max
Control Output: Open-collector, 12-24V DC, 1.2W Max

Regulatory Approvals
Regulatory: FCC Part 95 (No license required)
FCC(USA): OUR-XBEEPRO
IC (Canada): 4214A-XBEEPRO

Transmitter Operation Transmitter Operation The wireless analog signal transmitter reads analog input data from temperature, pressure, strain, flow, level or RH sensors and then sends the measured data over the air to a remote location. The measured 0-3 or 0-5 voltage, or 4-20mA current signals are converted to digital packets and then transmitted via a license free radio transmission to a waiting control receiver. The transmitter also includes one dry-contact switch input that controls one open collector output on the opposing control receiver.
Receiever Operation Transmitter Operation The wireless analog control receiver decodes any incoming radio packets and converts them back into the same voltage or current signal that is being measured by the transmitter in real time. The control receiver also includes one dry-contact switch input that controls one open collector output on the opposing transmitter.

Available Models
See Full Data Sheet For Model Numbers
Data Sheet
Each Wireless Transmitter/Receiver Set includes 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.

Note: Continued product improvements make specifications subject to change without notice.
This product is approved for use in North America.
