Universal Alarm Box
|

|
|

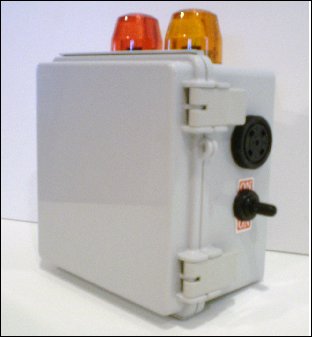

Dual Universal Alarm Panel
Model: UAP2-120V
Features

Rugged, Industrial Design for Indoor Use

88db Audible Piezo Horn

Large Red/Amber Flashing Strobe Lights

Power, Silence & Test Switch

120 VAC 50/60 Hz Operation

Automatic Alarm Reset
Applications
|
- Sump Pump Basins, Holding Tanks
- High or Low Temperature Alarm
|
- Water Holding & Sewage Tanks
- Industrial Process Monitoring
|
Description
Model UAP2-120VAC Universal Dual Alarm Box is designed for indoor or outdoor use. The unit features a non-metallic, NEMA 4X, rugged enclosure, red and amber warning strobe lights, piezo horn, and a external "power", silence" and test switch. The unit is design to provide a loud audible and visual warning to notify of up to two alarm conditions. Any type pressure, flow, level, or temperature switch will activate this alarm panel.
|
Specifications
|
Operating Voltage:
|
120 Vac 50/60 Hz
|
Alarm Indication:
|
Red/Amber Strobe Light, Piezo Horn: 85 dB
|
Switch Connection:
|
Terminal Block ( Dry Contact Input Only)
|
Alarm Reset:
|
Automatic
|
Enclosure:
|
PC/PBT Blended Plastic (NEMA 4X)
|
Operating Temperature:
|
-40 to 175 ºF (-40 to 80 ºC)
|
Dimensions:
|
5.9 X 5.9 x 3.54" (150 x 150 x 90mm)
|
Installation:
|
Wall Mounted, For Indoor or Outdoor Use
|
|
Available Models
|
Model Number
|
Description
|
UAP2-120V
|
Dual Universal Alarm Panel - 120VAC
|
|

|
|
|
