Universal Alarm Box
|
|
|
|
|
|
Universal Alarm Panel
Model: UAP1-120V
Features
Rugged, Industrial Design for Indoor Use
88db Audible Piezo Horn
Large Red Flashing Strobe Light
Power, Silence & Test Switch
120 VAC 50/60 Hz Operation
Automatic Alarm Reset
Applications
|
- Sump Pump Basins, Holding Tanks
- High or Low Temperature Alarm
|
- Water Holding & Sewage Tanks
- Industrial Process Monitoring
|
Description

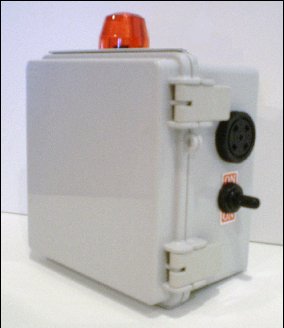

Model UAP1-120VAC Universal Alarm Box is designed for indoor or outdoor use. The unit features a non-metallic, NEMA 4X, rugged enclosure, a red warning strobe, piezo horn, and a external "power", silence" and test switch. The unit is design to provide a loud audible and visual warning to notify of an alarm condition. Any type pressure, flow, level, or temperature switch will activate this alarm panel.
|
|
Specifications
|
|
Operating Voltage:
|
120 Vac 50/60 Hz
|
|
Alarm Indication:
|
Red Strobe Light, Piezo Horn: 85 dB
|
|
Switch Connection:
|
Terminal Block ( Dry Contact Input Only)
|
|
Alarm Reset:
|
Automatic
|
|
Enclosure:
|
PC/PBT Blended Plastic (NEMA 4X)
|
|
Operating Temperature:
|
-40 to 175 ºF (-40 to 80 ºC)
|
|
Dimensions:
|
5.9 X 5.9 x 3.54" (150 x 150 x 90mm)
|
|
Installation:
|
Wall Mounted, For Indoor or Outdoor Use
|
|
|
Available Models
|
|
Model Number
|
Description
|
|
UAP1-120V
|
Universal Alarm Panel - 120VAC
|
|
|
|
|
|
