 Universal Alarm Box



Tower Light Indicators with Switch Control Box

Universal Alarm Box Series: TLBC-XL

Features

     Indicators Offer Maintenance Free Operation

     Green, Amber, Red, Blue or White Lights

     Attached or Remote Switch Box Models

     Rugged Switch Box Can Be Desk or Wall Mounted

     12V DC, 24V DC or 120V AC Operation

     Models with Optional Piezo Alarm Module

     Internal Connection Blocks for Remote Activation

     Wireless Models Available, See WTLBC Series





Applications

  • Industrial Operation Status Alarms
  • Factory Process Notification
  • Alert or Warning Indication for Office or Factory
Description

The TLBC-XL Series are Multi-color Tower Lights mounted onto a rugged plastic enclosure. All models feature internal wiring connection blocks that allow you to control the lights with a remote device such as a PLC or signals from a process controller. Models are also available that rotary or pushbutton switches mounted on the enclosure door in addition to the remote control feature. Versions are available with an attached switch box or a remote cable between the light assemblies and control box. Features include stainless steel mounting brackets, rotary or push-button switches and terminal blocks for remote control and power connection. Operating power options are 12V DC, 24V DC or 120V AC.

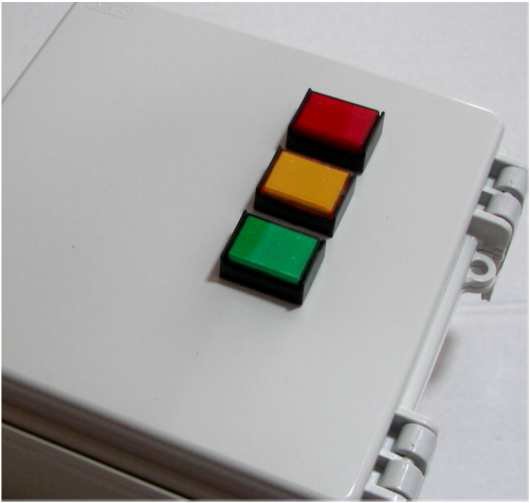

Tower light switch control box Tower light switch control box

Specifications
Enclosure Rating: NEMA 1, 2
Enclosure Material: PC/PBT Blended Plastic
Light Activation: Switch Control Box
Power Connection: Internal Terminal Block or Attached Cable
Operating Power: 12V DC, 24V DC or 120V AC (by model)
Optional Piezo Alarm: 88 dB
Installation: For Indoor Use Only
Switch/Light Box Dimension: 5.9" x 5.9" x 3.6",

Available Models
Models Data Sheet Link (pdf)
See Data Sheet for full model list. TLBC-XL Series
