 Universal Alarm Box


Solar Charging System 12VDC Solar Power
Charging System Kit

Series: SCS12V

Features

     Provides Regulated 12 Vdc Output

     Weatherproof Fiberglass Enclosure

     Pre-assembled, & Pre-wired

     Main Circuit Breaker & Fusing

     Space To Install Your Own Battery

     Designed for Off-grid Applications


Applications

  • Wireless Sensors & Transmitters
  • SCADA, Telemetry & Base Stations
  • Process Controls & Remote Monitoring
  • Oil & Gas Instrumentation
  • Irrigation Drip System
  • Water Pumping, Valves
  • Pond Aeration Systems
  • Remote Area Lighting
Description

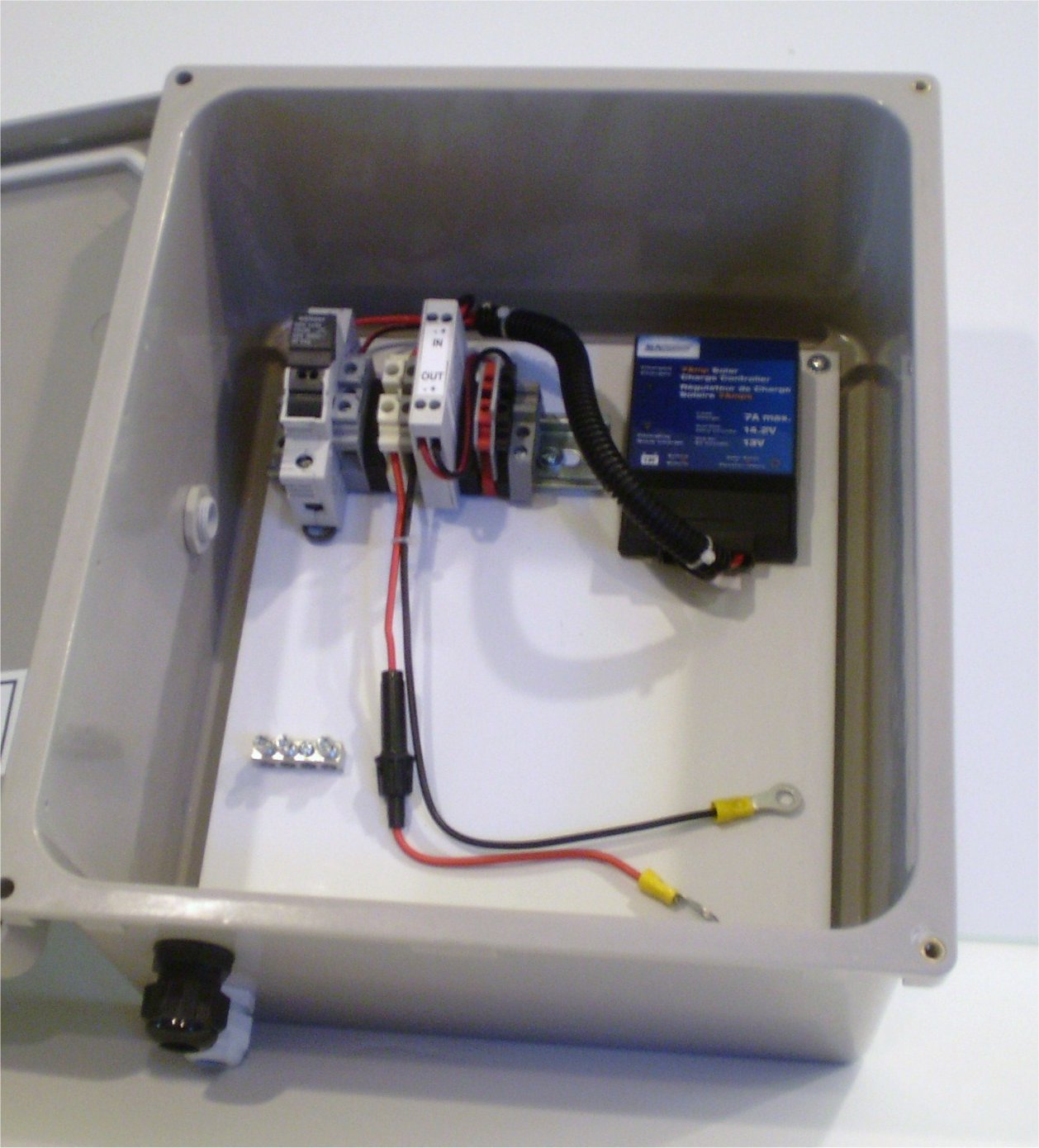

SCS12V Series provides a stable, regulated 12 Vdc output to power sensors, transmitters, SCADA, telemetry equipment, controls and instrumentation. Each kit is pre-wired, pre-assembled and designed for you to add your own solar panel and battery. All other system components are included. Each kit comes with a weatherproof fiberglass enclosure that has a gasketed hinged door, solar charge controller, touch-safe fuse holder, 12V Dc-dc converter and din-rail terminal blocks for output power connection.

General Specifications
Operating Temperature: -40 to 130 ºF (-40 to 60 ºC)
Enclosure Size: See Model Tables
Enclosure: Material: Fiberglass Reinforced Plastic
Enclosure Rating: NEMA 4X, UL Listed
Fuse Size Required: 10 x 38mm
Regulated Output Voltage: 12 Vdc

Available Models
Model Number SCS12V-60A-3A SCS12V-60B-3A
Max Solar Watts 60 60
Nominal Solar Volts 12V 12V
Charge Controller Capacity (Max Load Amps) 12V, 3A 12V, 3A
Max Battery Size (Height x Length x Width) 6.7 x 7.2 x 3.9" 7.3 x 7.8 x 5.3"
Enclosure Size 11.8 X 9.8 x 6.8"
(300 x 249 x 173mm) 		13.8 x 11.9 x 6.8"
(351 x 302 x 173 mm)

Model Number SCS12V-100A-7A SCS12V-100B-7A
Max Solar Watts 100 100
Nominal Solar Volts 12V 12V
Charge Controller Capacity (Max Load Amps) 12V, 7A 12V, 7A
Max Battery Size (Height x Length x Width) 6.7 x 7.2 x 3.9" 7.3 x 7.8 x 5.3"
Enclosure Size 11.8 X 9.8 x 6.8"
(300 x 249 x 173mm) 		13.8 x 11.9 x 6.8"
(351 x 302 x 173 mm)

Model Number SCS12V-120A-10A SCS12V-120B-10A
Max Solar Watts 120 120
Nominal Solar Volts 12V 12V
Charge Controller Capacity (Max Load Amps) 12V, 10A 12V, 10A
Max Battery Size (Height x Length x Width) 6.7 x 7.2 x 3.9" 7.3 x 7.8 x 5.3"
Enclosure Size 11.8 X 9.8 x 6.8"
(300 x 249 x 173mm) 		13.8 x 11.9 x 6.8"
(351 x 302 x 173 mm)

Model Number SCS12V-160A-20A SCS12V-160B-20A
Max Solar Watts 160 160
Nominal Solar Volts 12V 12V
Charge Controller Capacity (Max Load Amps) 12V, 20A 12V, 20A
Max Battery Size (Height x Length x Width) 6.7 x 7.2 x 3.9" 7.3 x 7.8 x 5.3"
Enclosure Size 11.8 X 9.8 x 6.8"
(300 x 249 x 173mm) 		13.8 x 11.9 x 6.8"
(351 x 302 x 173 mm)
Note: Continued product improvements make specifications subject to change without notice.
