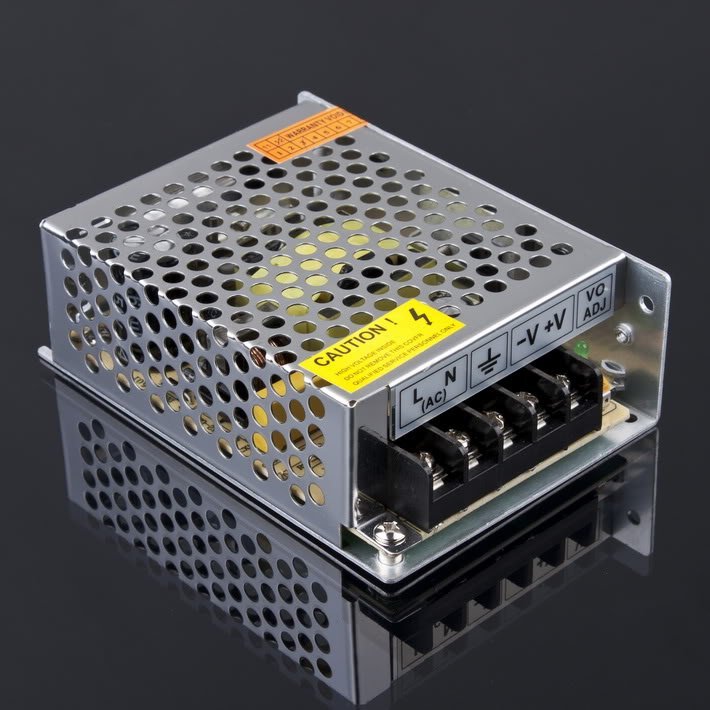

12 and 24 VDC Enclosed Panel Mount Power Supplies
Series: PMPS
Features
Short Circuit and Overload Protection
12VDC & 24VDC Output Models
Rugged Panel Mount Design
CE/FCC/CCC Safety Compliance
Applications
|
- Radio Transmitters, Base Stations
- Process Controls, Instrumentation
|
- Telemetry & SCADA Equipment
- LED Lighting
|
Description
The SMPS Series of economical, rugged DC power supplies feature universal single-phase input and output voltages of 12 VDC and 24 VDC. These high-quality DC power supplies provide overload, overvoltage and short circuit protection. The panel mount vented metal frame design is perfect for any indoor application that requires a basic DC voltage power supply.
|
|
General Specifications
|
|
Input Voltage:
|
85-264VAC 50/60 Hz
|
|
Enclosure:
|
Metal Vented Case
|
|
Wire Connection:
|
Terminal Block
|
|
Temperature Range:
|
14 to 104ºF (-10 to 40ºC)
|
|
Ambient Humidity:
|
0-95% Non-condensing
|
|
Dimension:
|
4.33 x 3.03 x 1.42" (110 x 77 x 36mm)
|
|
|
Available Models
|
|
Model Number
|
Description
|
|
PMPS-12V-2
|
12VDC, 2A Panel Mount Power Supply
|
|
PMPS-12V-3
|
12VDC, 3A Panel Mount Power Supply
|
|
PMPS-12V-5
|
12VDC, 5A Panel Mount Power Supply
|
|
PMPS-24V-2
|
24VDC, 2A Panel Mount Power Supply
|
|
PMPS-24V-3
|
24VDC, 3A Panel Mount Power Supply
|
|
PMPS-24V-5
|
24VDC, 5A Panel Mount Power Supply
|
|
|
|
|
|
