 Universal Alarm Box



Emergency Stop Switch Station

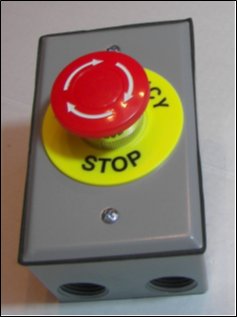

Emergency Stop Switch Station Series: ES-SS

Features

     Pained Metal Enclosure with Gasketed Lid

     Latching Emergency Stop Switch

     Yellow Back Plate with Red Mushroom Switch

     Switch Rated at 10A, 660V AC

     Use with ½" Conduit Fittings or Cable Glands

     Both Keyed or Non-Keyed Models Available






Applications

  • Lathes , Drill Presses, CNC Milling Machines
  • Motor, Pump or Valve Rapid Shutdown
  • Rotating Industrial Machines
Description

ES-SS Series Enclosed emergency stop switch stations provide an economical solution for many existing applications. Simply mount, then wire the enclosure for reliable emergency control. Features include a keyed or non-keyed switch, rugged painted metal enclosure with a gasketed lid. Threaded holes on the unit accept standard ½" conduit fittings or cable glands for wiring.

Emergency Stop Switch Station Emergency Stop Switch Station

Specifications
Enclosure Rating: NEMA 1, 2
Enclosure Material: Painted Cast Aluminum
Enclosure Dimensions: 4.5" L x 2.75" W x 2.25" H
Installation: For Indoor Use Only
Switch Rating: DPST, AC 660V, 10A, 1 NC + 1 NO
Switch Operation: Push to Latch -OFF, Twist to Release - ON

Available Models
Models Description
ES-SS Emergency Stop Switch Station
ES-SS-K Keyed Emergency Stop Switch Station (Includes two keys)
