Wireless Level Sensor Transmitter/Receiver Set
|
|
|
|
Non-contact Ultrasonic Level Sensor / Wireless Transmitter System
|
|
MODEL: WULT-24-420
Features
Wireless Bridge Between Sensor & Instrument
Ultrasonic Sensor with Narrow Beam Pattern
Sensors Available with Two Different Ranges
Up To 1 Mile Line-of-site Max Distance
Receiver Provides 4-20mA or 1-5V DC Output
Powered By 12-24V DC Supply
Din-rail or NEMA 4X Enclosures
Pre-configured, Ready-To-Operate
Sold As Sensor/Transmitter/Receiver Matched Set
License Free Radio Operation
|
Applications
Bin, Tank or Pool Level Monitoring, Irrigation Systems,
Process Control & Instrumentation,
Snow Level Measurement
Description
Series WULT-24-420 Continuous Ultrasonic Level Sensor with Wireless Transmitter/Receiver Set provides a wireless bridge between the included non-contact ultrasonic level sensor and any analog input process monitoring or control Instrument. Measurements from the level sensor connected to the transmitting unit are sent via a license free radio signal to a receiver unit up to 1 mile (Line-of-site) away. The receiving unit provides an accurate analog current or voltage output that corresponds the level being measured by the sensor. The sensor transmitter can be powered by a 12-24V DC supply, 12V DC battery or powered by optional solar kit.
|
|

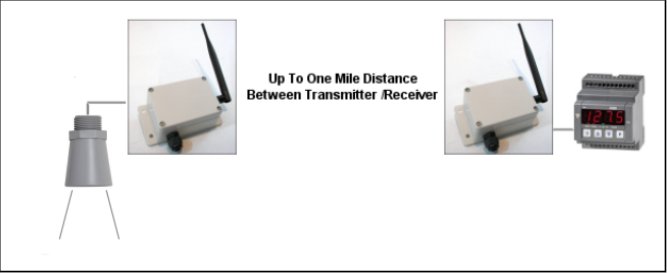

SAMPLE APPLICATION: ULTRASONIC LEVEL SENSOR SENDING WIRELESS MEASUREMENTS TO REMOTE PLC
|
|
Sensor Specifications
|
|
Sensor Frequency:
|
42kHz
|
|
Sensor Connection:
|
3 Wire Leads
|
|
Sensor Read Rate:
|
6.66Hz
|
|

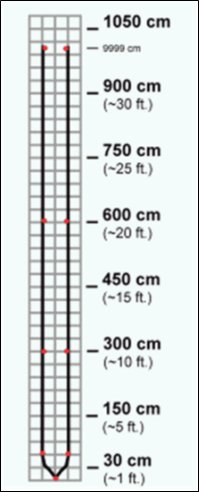

Measurement Distance/Beam Pattern:
|
See charts
|
|
Mounting:
|
3/4"-14 NPT Thread
|
|
Operating Temperature:
|
-40 to 149 °F (-40 to 65 °C)
|
|
Cable Length:
|
12', 3-wire shielded integral cable
|
|
|
General Transmitter/Receiver Specifications
|
|
Radio Frequency:
|
ISM 2.4GHz
|
|
Regulatory:
|
FCC Part 95 (No license required)
|
|
Control Lines:
|
1, 2 or 4
|
|
Transmitter/Receiver Code Matching:
|
Factory set
|
|
Antenna Connection:
|
RP-SMA
|
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance
(with included antennas):
|
Indoor/Urban 100ft, Line-of-site 600ft
|
Transmit/Receive Distance
(with optional antennas):
|
Indoor/Urban 300ft, Line-of-site 1 Mile
|
|
Operating Temperature:
|
-22 to 113 ºF (-30 to 45 ºC)
|
|
Enclosure:
|
Din-rail mount (35mm), ABS/PC Blend Plastic or NEMA 4X PCT
|
|
Antennas:
|
7dbi, Omni-directional (Included)
|
|
Transmitter Specifications
|
|
Input Signal:
|
ULSXL Ultrasonic Level Sensor
|
|
RF Power Output:
|
63mW
|
|
RF Data Rate:
|
250 kbps
|
|
RF Output Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 2W max
|
|
Receiver Specifications
|
|
Receive Sensitivity:
|
-100 dBm
|
|
RF Input Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
Analog Output:
|
4-20mA, 1-5VDC (Field Selectable)
|
|
Regulatory Approvals
|
|
Regulatory:
|
FCC Part 95 (No license required)
|
|
FCC(USA):
|
OUR-XBEEPRO
|
|
IC (Canada):
|
4214A-XBEEPRO
|
|
Available Models
|
|
Model Number
|
Description
|
|
WULT-24-420-500CM
|
16' (500cm) Distance Ultrasonic Level Sensor with NEMA 4X Wireless Analog Transmitter/Receiver Set
|
|
WULT-24-420-1000CM
|
32' (1000cm) Distance Ultrasonic Level Sensor with NEMA 4X Wireless Analog Transmitter/Receiver Set
|
|
WULT-DR-24-420-500CM
|
16' (500cm) Distance Ultrasonic Level Sensor with Din-rail Wireless Analog Transmitter/Receiver Set
|
|
WULT-DR-24-420-1000CM
|
32' (1000cm) Distance Ultrasonic Level Sensor with Din-rail Wireless Analog Transmitter/Receiver Set
|
|
Each Wireless Analog Transmitter/Receiver Set includes Sensor, Sensor Cable, 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.
Note: Continued product improvements make specifications subject to change without notice.
|
|
This product is approved for use in North America.
|
