Continuous Level Transmitters / Sensors

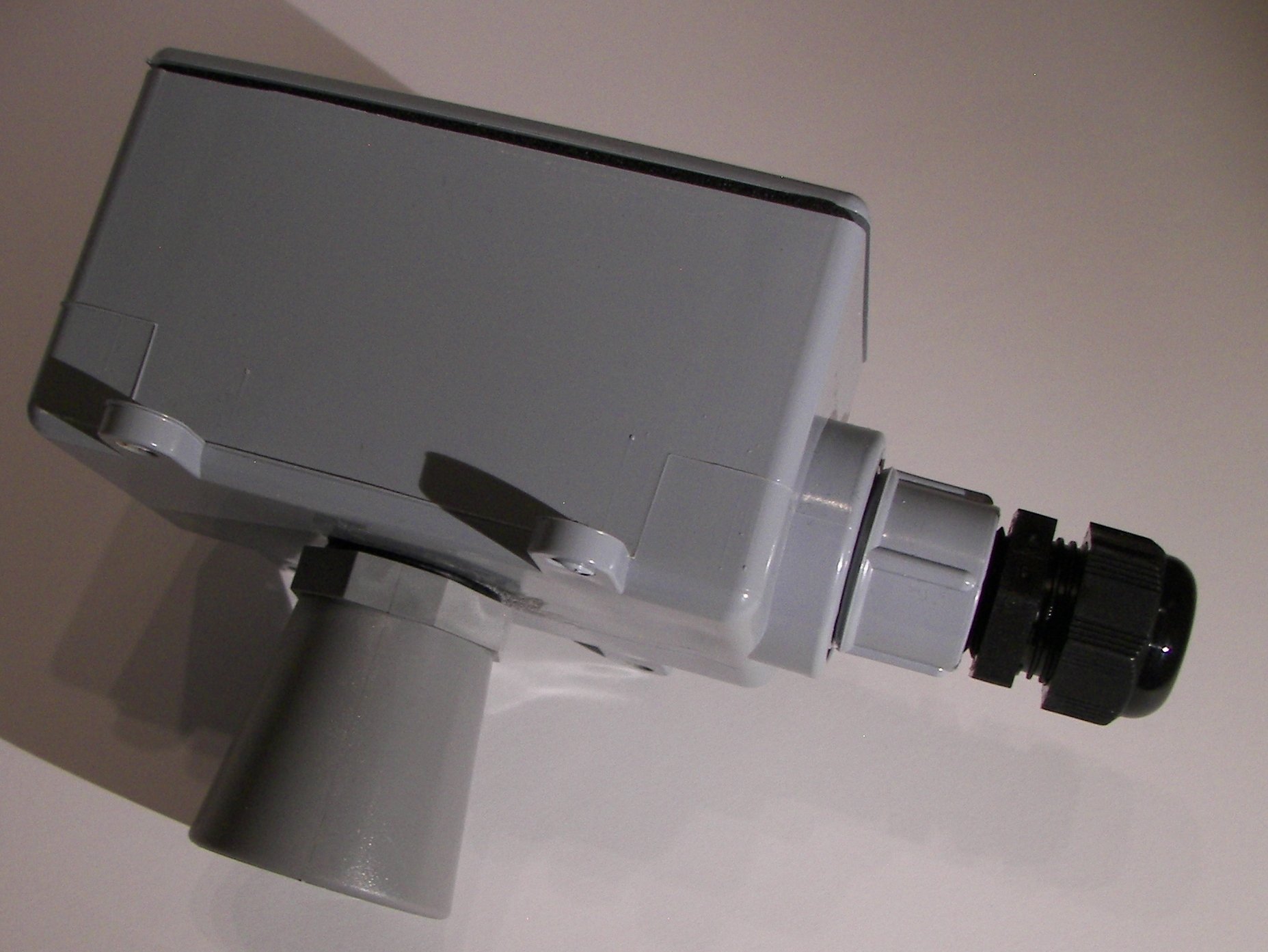

Non-contact Ultrasonic Level Transmitter LV7389-420-SB Ultrasonic 4-20mA Tank Level Transmitter

Model LV7389-420-SB Ultrasonic Tank Level Transmitter operates with narrow beam non-contact sensor that is ideal for monitoring solids and liquid height in many different applications. The sensor/transmitter combination accomplishes tank level measurement by providing a 4-20mA current or 1-5V DC voltage output that corresponds the distance measured by the sensor. Connect the transmitter output to a process meter or PLC to control a pump, valve or alarm unit. The sensors are rugged, reliable and designed for use in harsh environments.

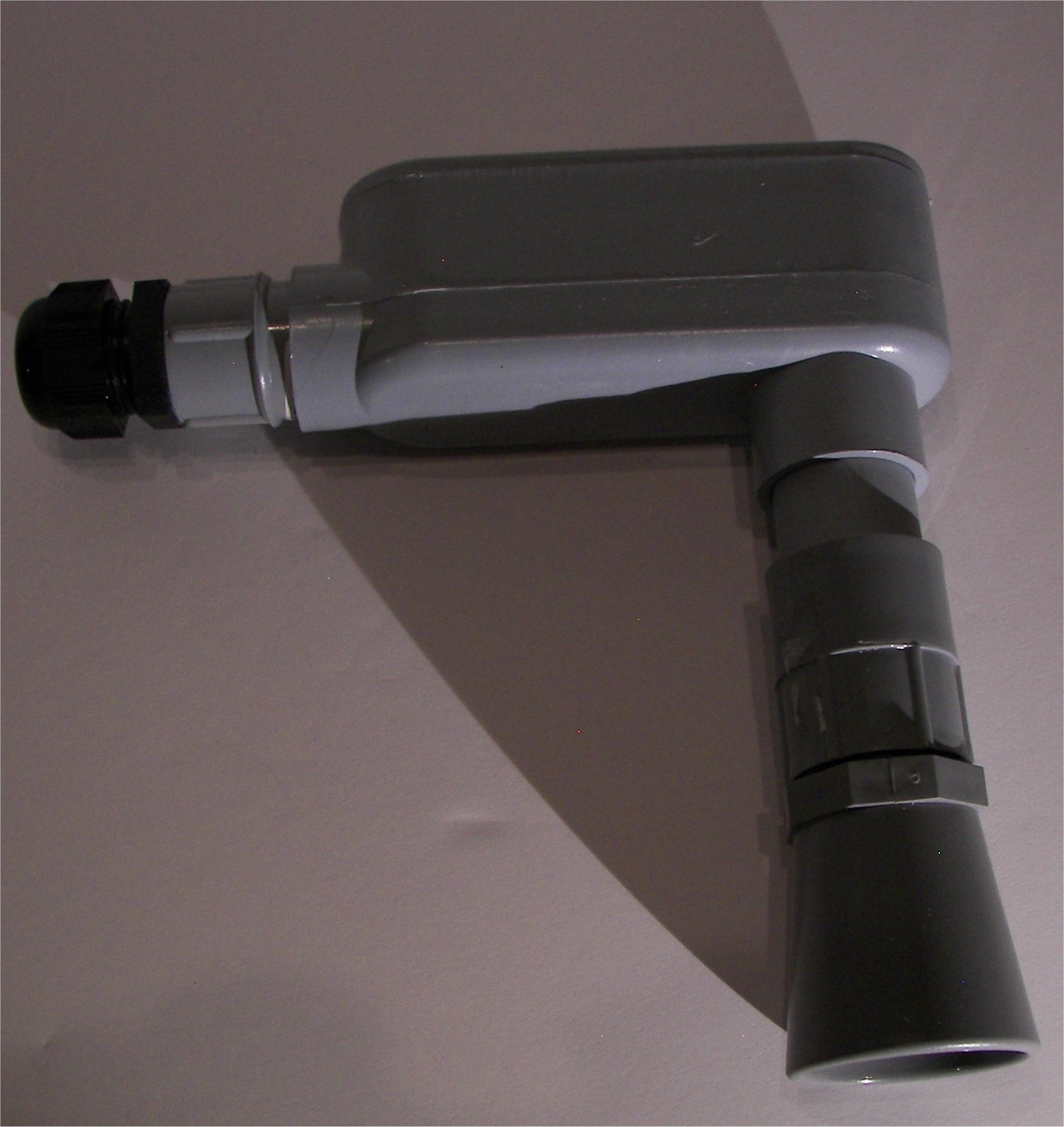

Non-contact Ultrasonic Level Transmitter LV7389-420-PA Ultrasonic 4-20mA Output Tank Level Transmitter

Model LV7389-420-PA Ultrasonic Tank Level Transmitter operates with narrow beam non-contact sensor that is ideal for monitoring solids and liquid height in many different applications. The sensor/transmitter combination accomplishes tank level measurement by providing a 4-20mA current or 1-5V DC voltage output that corresponds the distance measured by the sensor. Connect the transmitter output to a process meter or PLC to control a pump, valve or alarm unit. The sensors are rugged, reliable and designed for use in harsh environments.

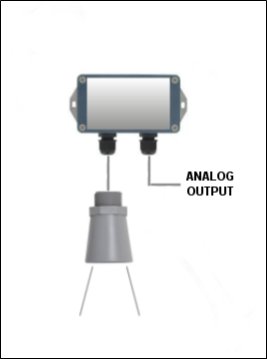

Non-contact Ultrasonic Level Transmitter ULTX-420 Ultrasonic Level Analog Output Transmitter

Model ULTX-420 Ultrasonic Level Transmitter operates with narrow beam non-contact sensors that are ideal for monitoring solids and liquid height in many different applications. The sensor/transmitter combination accomplishes tank level measurement by providing a current or voltage output that corresponds the distance measured by the sensor. Connect the transmitter output to a process meter or PLC to control a pump, valve or alarm unit. The sensors are rugged, reliable and designed for use in harsh environments. Two different models are available.


Non-contact Wireless Ultrasonic Level Transmitter WLV7389-24-SB Wireless Ultrasonic Tank Level Transmitter

Model WLV7389-24-SB Wireless Ultrasonic Tank Level Transmitter provides a license free 2.4GHz wireless bridge between level sensor and process instrument at a distance up to 1 mile line-of-site (LOS). The sensor/wireless transmitter combination accomplishes tank level measurement by providing a 4-20mA current or 1-5V DC voltage output on the wireless receiver side that corresponds the to distance measured by the sensor. Connect the receiver output to a process meter or PLC to control a pump, valve or alarm unit.

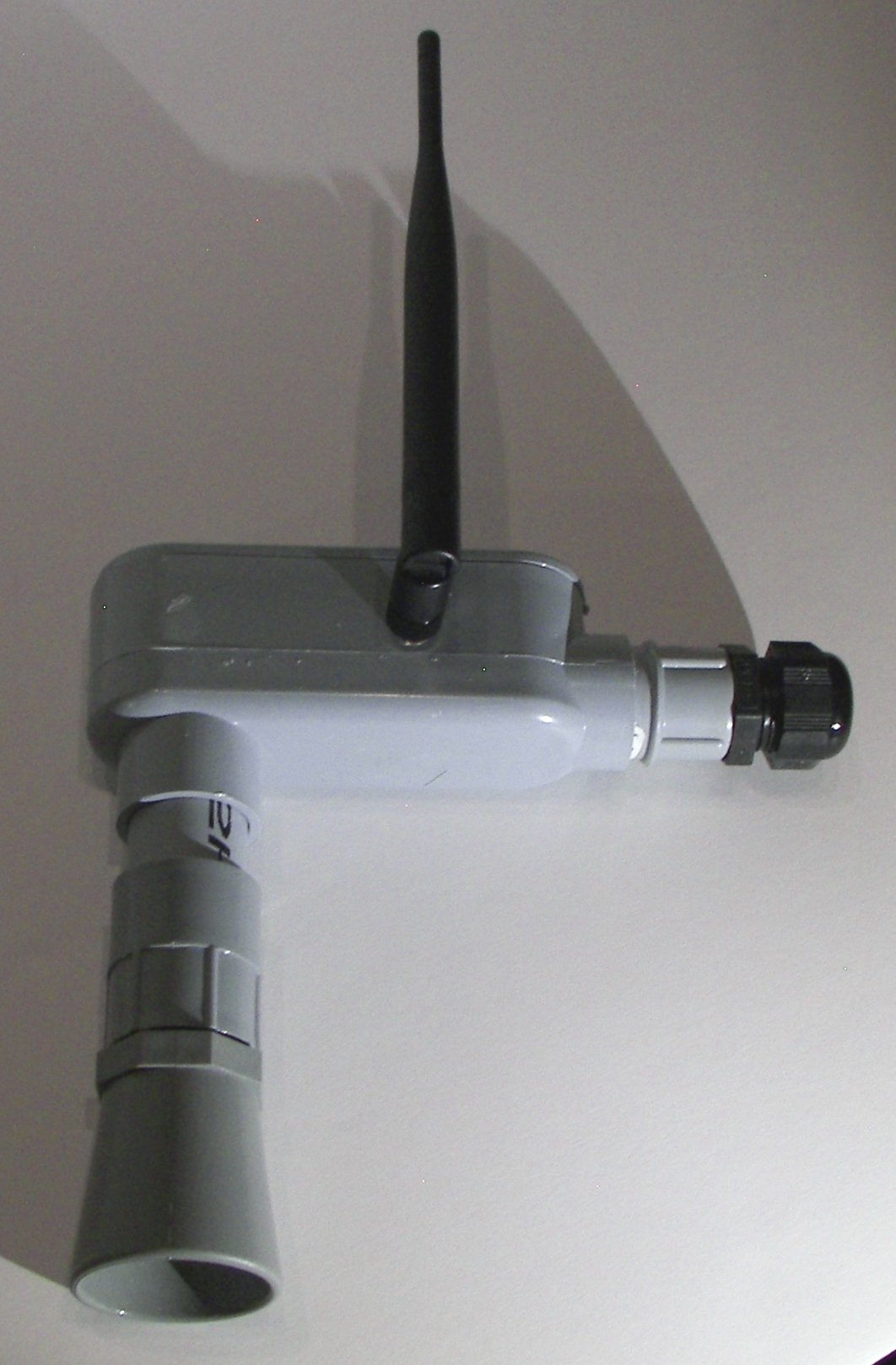

Non-contact Wireless Ultrasonic Level Transmitter WLV7389-24-PA Wireless Ultrasonic Tank Level Transmitter

Model WLV7389-24-PA Wireless Ultrasonic Tank Level Transmitter provides a license free 2.4GHz wireless bridge between level sensor and process instrument at a distance up to 1 mile line-of-site (LOS). The sensor/wireless transmitter combination accomplishes tank level measurement by providing a 4-20mA current or 1-5V DC voltage output on the wireless receiver side that corresponds the to distance measured by the sensor. Connect the receiver output to a process meter or PLC to control a pump, valve or alarm unit.


Non-contact Wireless Ultrasonic Level Transmitter WLV7389-900-SB Wireless Ultrasonic Tank Level Transmitter

Model WLV7389-900-SB Wireless Ultrasonic Tank Level Transmitter provides a license free 900MHz wireless bridge between level sensor and process instrument at a distance up to 6 miles line-of-site (LOS). The sensor/wireless transmitter combination accomplishes tank level measurement by providing a 4-20mA current or 1-5V DC voltage output on the wireless receiver side that corresponds the to distance measured by the sensor. Connect the receiver output to a process meter or PLC to control a pump, valve or alarm unit.


Non-contact Wireless Ultrasonic Level Transmitter WLV7389-900-PA Wireless Ultrasonic Tank Level Transmitter

Model WLV7389-900-PA Wireless Ultrasonic Tank Level Transmitter provides a license free 900MHz wireless bridge between level sensor and process instrument at a distance up to 6 miles line-of-site (LOS). The sensor/wireless transmitter combination accomplishes tank level measurement by providing a 4-20mA current or 1-5V DC voltage output on the wireless receiver side that corresponds the to distance measured by the sensor. Connect the receiver output to a process meter or PLC to control a pump, valve or alarm unit.

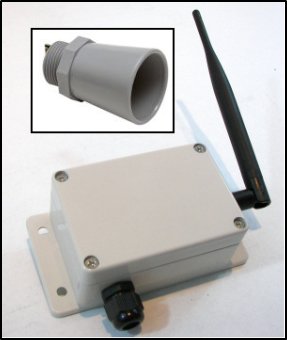

Non-contact Ultrasonic Level Transmitter/Wireless System Non-contact Ultrasonic Level Transmitter/Wireless System

Series WULT-24-420 Continuous Ultrasonic Level Sensor with Wireless Transmitter/Receiver Set provides a wireless bridge between the included non-contact ultrasonic level sensor and any analog input process monitoring or control Instrument. Measurements from the level sensor connected to the transmitting unit are sent via a license free radio signal to a receiver unit up to 1 mile (Line-of-site) away. The wireless receiver unit provides an accurate analog current or voltage output that corresponds the level being measured by the remote sensor.


Non-contact Ultrasonic Level Transmitter/Wireless System Non-contact Ultrasonic Level Transmitter/Wireless System

Series WULT-900-420 Continuous Ultrasonic Level Sensor with Wireless Transmitter/Receiver Set provides a wireless bridge between the included non-contact ultrasonic level sensor and any analog input process monitoring or control Instrument. Measurements from the level sensor connected to the transmitting unit are sent via a license free radio signal to a receiver unit up to 3 miles (Line-of-site) away. The wireless receiver unit provides an accurate analog current or voltage output that corresponds the level being measured by the remote sensor.

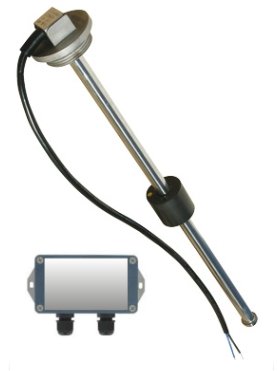

Loop-powered Foat Style Level Sensor/Transmitter CLTX-42 Series - Continuous Level Sensor / Analog Transmitter

Model CLTX-42 Continuous Level Transmitter operates with vertical mounted, stainless steel float sensors that are ideal for monitoring liquid height in many applications. The sensor/transmitter combination accomplishes tank level measurement by providing a current or voltage output that corresponds the position of the float as it travels up and down the sensor's shaft. Connect the transmitter output to a process meter or PLC to control a pump, valve or alarm unit.

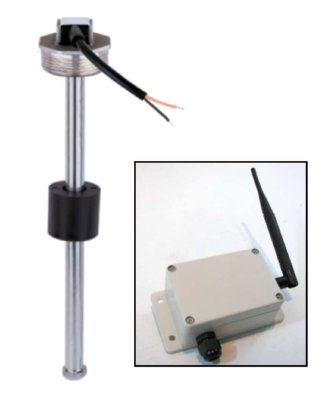

wireless continuous level transmitter WLTX-24 Series - Wireless Continuous Level Sensor Transmitter / Receiver

Series WLTX-24 Continuous Level Sensor with Wireless Transmitter/Receiver Set provides a wireless bridge between the included level sensor and any analog input process monitoring or control Instrument. Measurements from the level sensor connected to the transmitting unit are sent via a license free radio signal to a receiver unit up to 1 mile (Line-of-site) away. The receiver provides an accurate analog current or voltage output that corresponds the level of the float as it slides up and down the sensors shaft.


wireless continuous level transmitter WLTX-900 Series - Wireless Continuous Level Sensor Transmitter / Receiver

Series WLTX-900 Continuous Level Sensor with Wireless Transmitter/Receiver Set provides a wireless bridge between the included level sensor and any analog input process monitoring or control Instrument. Measurements from the level sensor connected to the transmitting unit are sent via a license free radio signal to a receiver unit up to 3 miles (Line-of-site) away. The receiver provides an accurate analog current or voltage output that corresponds the level of the float as it slides up and down the sensors shaft.
